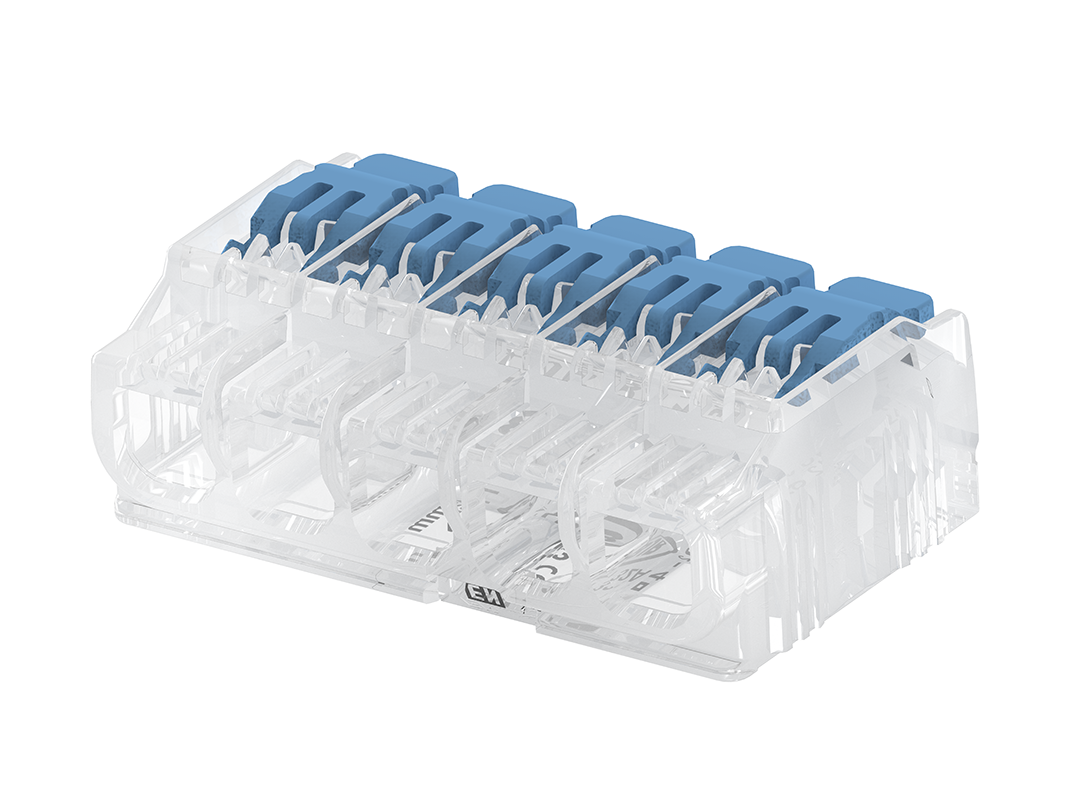

Universal wire connector 2. Gen., 5 numbers of connection, 1 potential, Contact opening function
-
-
ø 0.2 - 4 mm²
-
ø 0.2 - 4 mm²
-
9 - 10 mm
-
-
-
- Versatile use in various applications in lighting as well as in building installations
- Combination of different wire cross-section in one terminal possible
- High pull-off forces
- Direct insertion of rigid wires
- Easy and tool-free connection and disconnection of wires
- Release lever for flexible wires
- Adjustment of the optimal stripping length on the underside
- The transparent housing allows for easy checking the correct wire positioning
- Test ports on front and backside
Product standards:
- EN IEC 60998-1
- EN IEC 60998-2-2
- UL 486C
Application areas: | Universal wire connector in electricity area. Versatile use in various applications in lighting as well as in building installations. |
---|---|
Color: | transparent - blue |
Contact opening: | 0.2 - 4 mm² / AWG 24 - 12 |

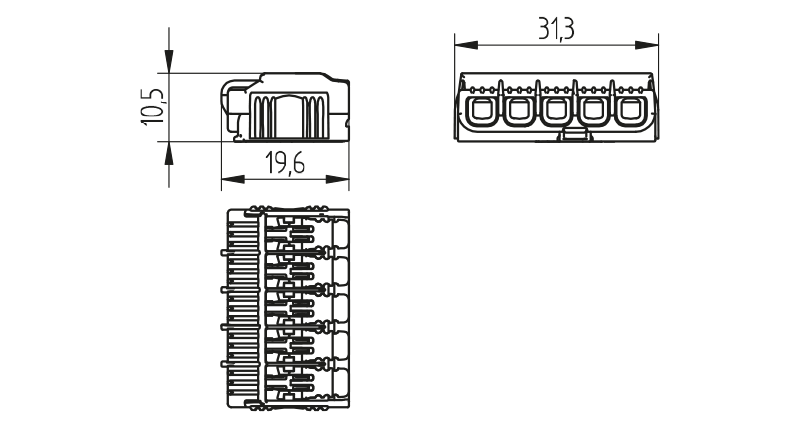

Height: | 10,5 mm |
Length: | 19,6 mm |
Lettering: | ohne / without |
Material: | Housing: PC, transparent - Cover: PK, blue - Contacts: Copper, CrNi |
Note warranty conditions: | *Warranty conditions of BJB GmbH & Co. KG as stated as available via the Internet under https://www.bjb.com/en/legal-information/general-terms-and-conditions/ are valid. |
Operating current: | 32 A (IEC) / 20 A (UL) |
Operating temperature: | -5 to +45°C |
Operating voltage: | 450 V (IEC) / 600 V (UL) |
Other: | Humidity 5 - 95% |
Packaging quantity: | 1500 |
Producttype: | Univeral wire connectors |
Series: | Universal wire connectors |
T-marking: | T85 (IEC) / T105 (UL) |
Weight: | 5,62 g |
Width: | 31,2 mm |
Wire length: | Stripping length 11 - 12 mm |
Wires: | solid, stranded and flexible |
old article number: | 46.811.1003.85 |
Available Downloads
Available CAD Downloads
Certifications
Article Number | Status | Description | Documents |
---|---|---|---|
46.811.1003-0 | Genehmigung_liegt_vor-Approval_at_hand6933209 | ||
46.811.1003-0 | cULus,_gültig_für_USA_und_Kanada-cULus_(USA_and_Kanada)6700405 |
-
-
