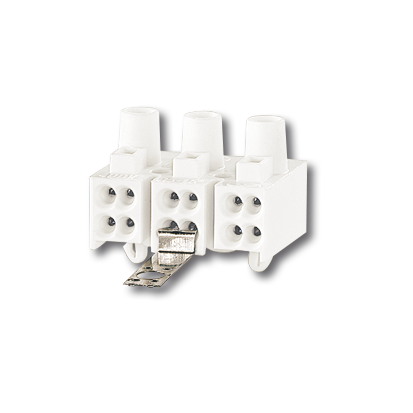

Terminal block 3 poles
Article number:
48.112.0313-0
EAN:
-
-
-
-

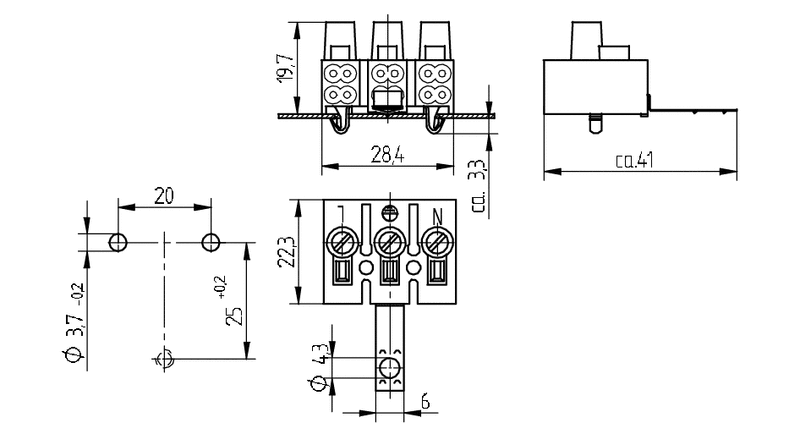

ø 3,4
-
-
-
0,6 - 1,0
Product information "Terminal block 3 poles"
2 wiring channels remain free when earth bracket is fitted.
Screw / pushwire terminals
Nominal cross section: 1.5 mm²
Pushwire terminals: 0.5 - 1.5 mm²
Screw terminals will also accept wires with ferrule
Screw / pushwire terminals
Nominal cross section: 1.5 mm²
Pushwire terminals: 0.5 - 1.5 mm²
Screw terminals will also accept wires with ferrule
| Color: | natural colour |
|---|---|
| Earth contact : | Earth bracket |
| Lettering: | N ⏚ L |
| Luminaire wall thickness: | 0.6 - 1.0 |
| Material: | Housing: PA 6.6 |
| Note warranty conditions: | *Warranty conditions of BJB GmbH & Co. KG as stated as available via the Internet under https://www.bjb.com/en/legal-information/general-terms-and-conditions/ are valid. |
| Number of poles: | 3 |
| Packaging quantity: | 1000 |
| Producttype: | 3 pole - screw / push-wire terminals |
| Screw terminals: | ø 3.4 |
| Series: | Screw / push-wire terminals |
| Weight: | 8 g |
| mounting method 1: | Snap fixing |
| old article number: | 48.112.0313.51 |
Available CAD Downloads
Certifications
| Article Number | Status | Description | Documents |
|---|---|---|---|
| 48.112.0313-0 | ÜG_Überwachungsgutachten_--Certificate_of_Conformity_-2446048 | ||
| 48.112.0313-0 | EAC_Genehmigung_liegt_vor_--EAC_approval_at_hand_-4070828 |
-
-
-
