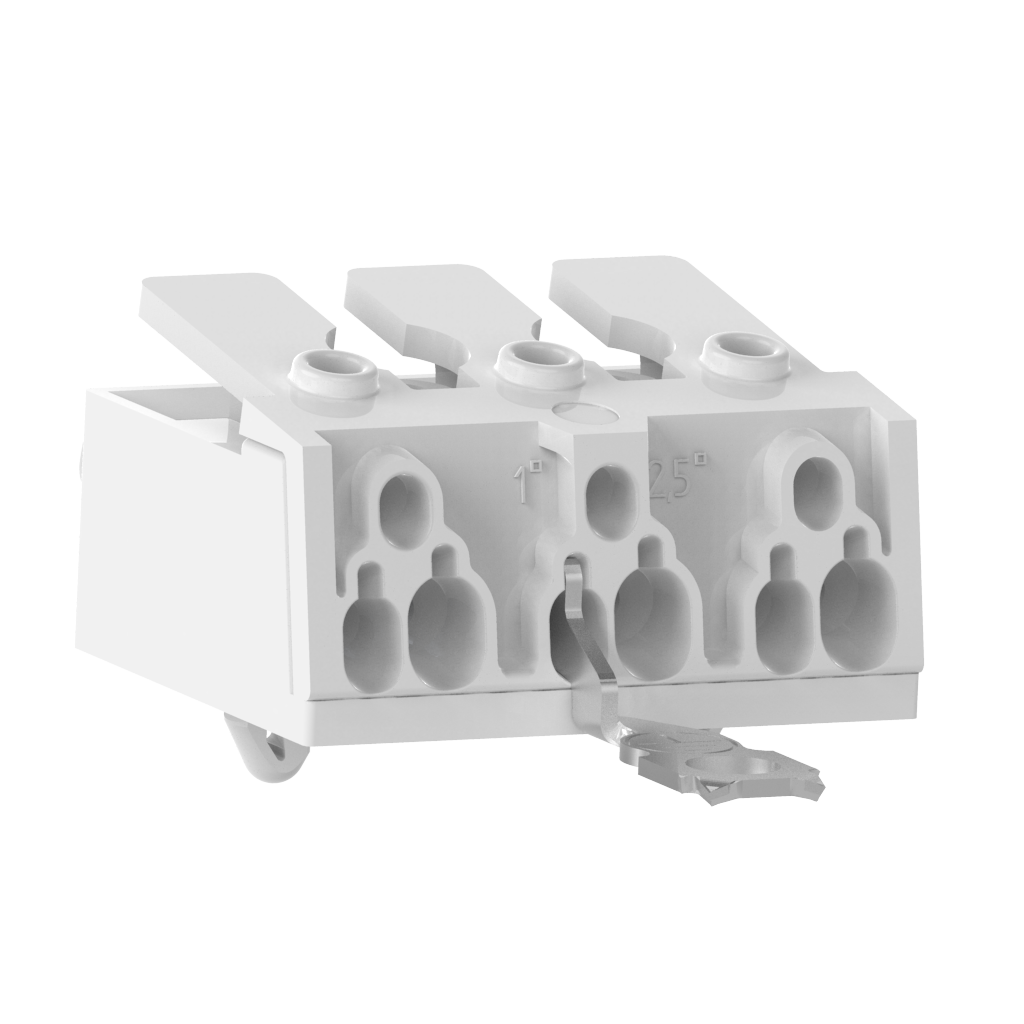

Terminal block 3 poles
Article number:
46.413.1114-0
EAN:
4049853
-
-
0,5 - 1,0
-
max. ø 1,8 mm
-
-
-
-
0,5 - 1,0 mm²: 8 - 9 mm / 1,0 - 2,5 mm²: 12 - 13 mm
-
24A/450V
-
-
max. ø 1,8 mm
Product information "Terminal block 3 poles"
Internal wiring: only for solid conductors and 7 stranded wire ends
Cable diameters:
External: 2 x 0.5 - 2.5 mm²
Internal:
- a) 1 x 0,5 - 1,0 mm², releasable
- b) 1 x 0.5 - 2,5 mm², releasable
- c) Suppression capacitor: 1 x 0.5 - 0.75 mm², not releasable
Further markings on request
Cable diameters:
External: 2 x 0.5 - 2.5 mm²
Internal:
- a) 1 x 0,5 - 1,0 mm², releasable
- b) 1 x 0.5 - 2,5 mm², releasable
- c) Suppression capacitor: 1 x 0.5 - 0.75 mm², not releasable
Further markings on request
| Color: | white |
|---|---|
| Contact opening: | With integral cable release |
| Earth contact : | Earth bracket |
| Lettering: | N ⏚ L |
| Luminaire wall thickness: | 0.5 - 1.0 |
| Material: | Housing: PC (V2) |
| Note warranty conditions: | *Warranty conditions of BJB GmbH & Co. KG as stated as available via the Internet under https://www.bjb.com/en/legal-information/general-terms-and-conditions/ are valid. |
| Number of poles: | 3 |
| Operating current: | 24A |
| Operating voltage: | 450V |
| Packaging quantity: | 500 |
| Producttype: | 3 pole - pushwire terminal |
| Series: | Pushwire terminals |
| Weight: | 9 g |
| mounting method 1: | Snap fixing |
| old article number: | 46.413.1114.50 |
Available CAD Downloads
Certifications
| Article Number | Status | Description | Documents |
|---|---|---|---|
| 46.413.1114-0 | Genehmigung_liegt_vor-Approval_at_hand750009 | ||
| 46.413.1114-0 | ENEC_Zeichen-ENEC_Approval720536 | ||
| 46.413.1114-0 | Genehmigung_liegt_vor-Approval_at_hand4070828 | ||
| 46.413.1114-0 | Genehmigung_liegt_vor-Approval_at_hand1193594 |
-
-
0,5 - 1,0
-
max. ø 1,8 mm
-
-
-
-
0,5 - 1,0 mm²: 8 - 9 mm / 1,0 - 2,5 mm²: 12 - 13 mm
-
24A/450V
-
-
max. ø 1,8 mm

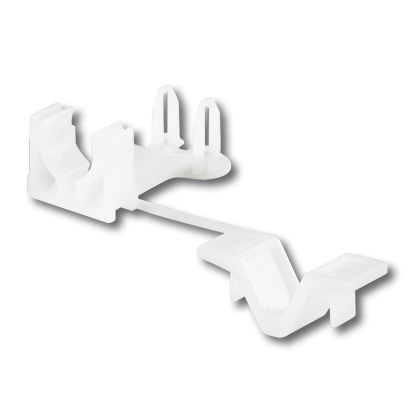

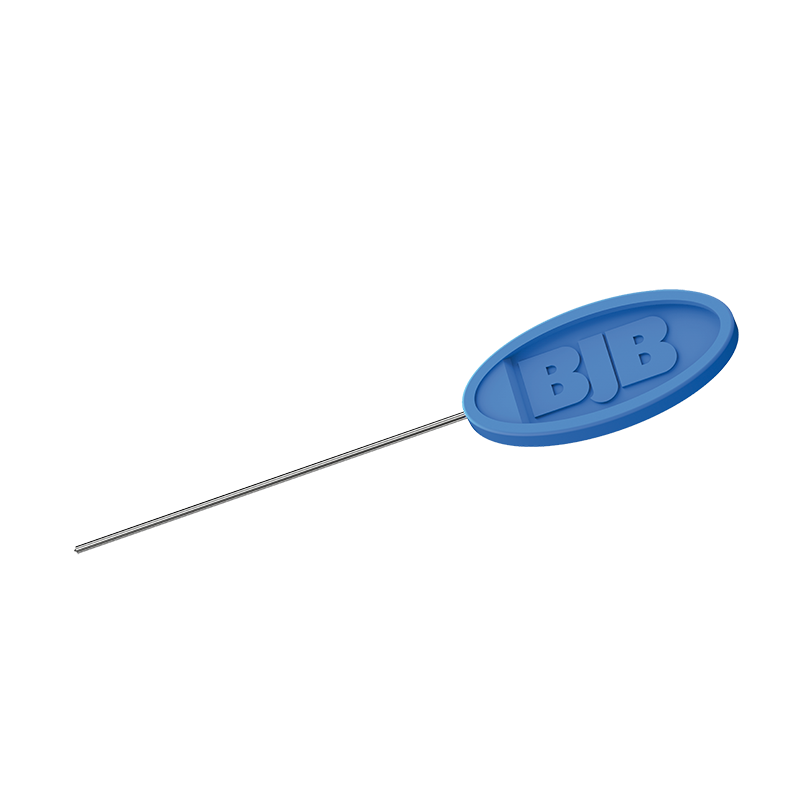

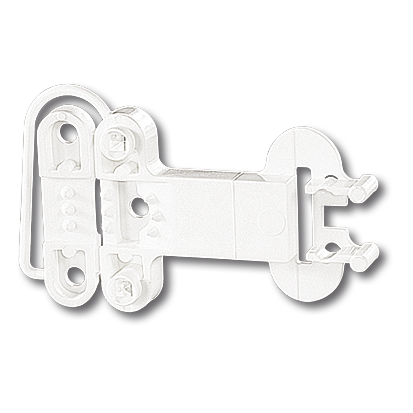

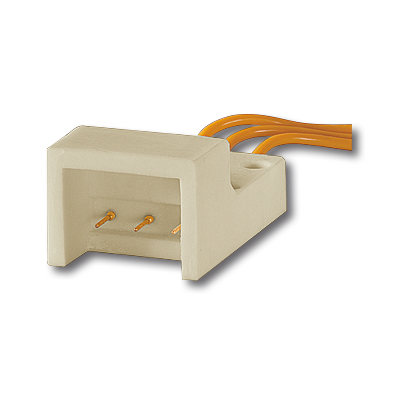

Accessories
