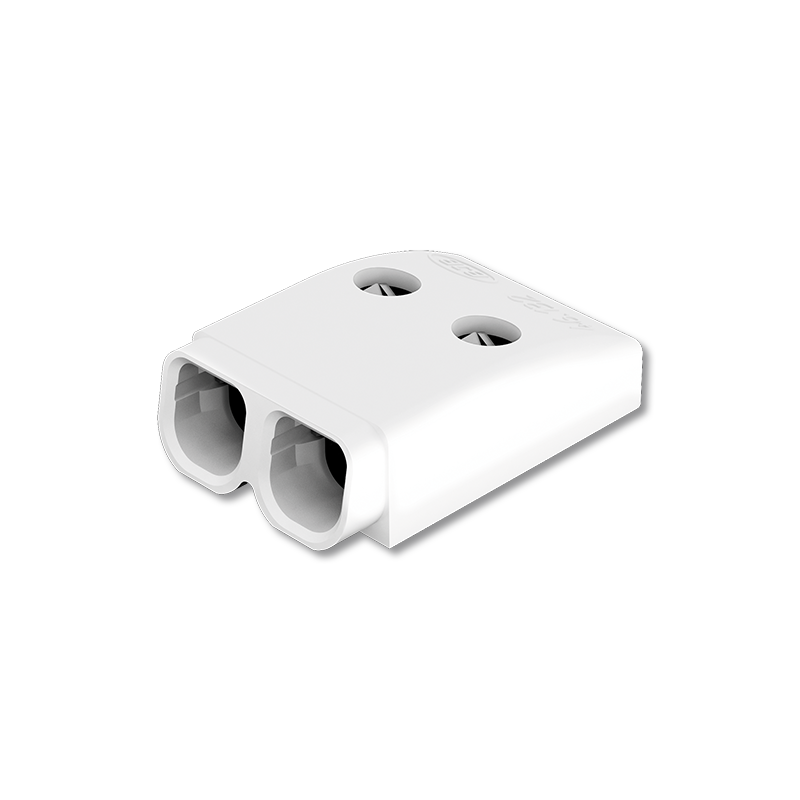

SMD Terminal Block MiniFlex - 2 pole
-
-
0.20-0.50 mm², AWG 24-20
-
0,20-0,75 mm², AWG 24 -18
-
Ø < 2.1 -2.7 mm = 9+1 mm
-
-
-
0.20 - 0.75mm²AWG 24 - 18
Direct insertion of solid and stranded, tinned wire ends and finely stranded conductors by using the contact opening function
Contact opening function - also for release of already inserted wires
Mounting and wiring position: PCB top side

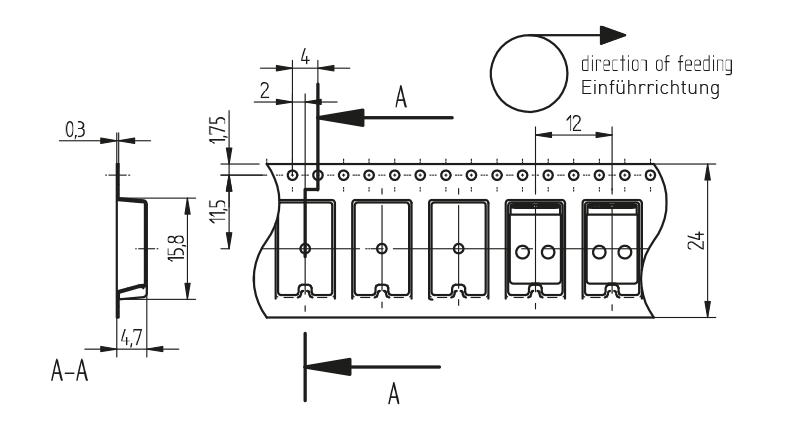

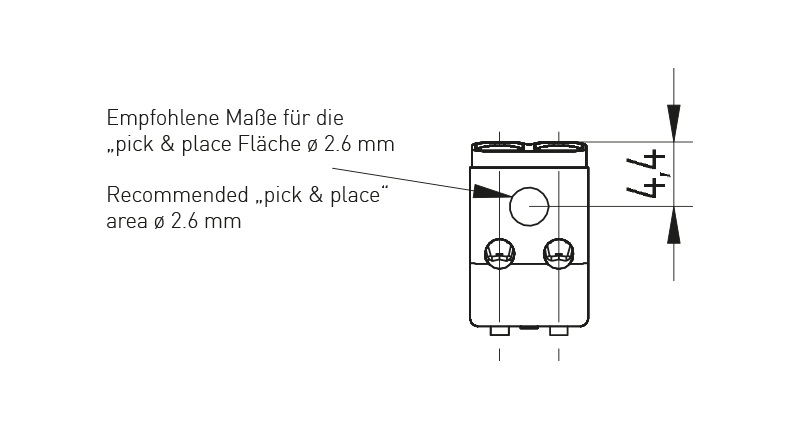

Machine-compatible "tape-and-reel" packaging
Fixing: Lead-free reflow soldering according to DIN EN 610760-1, section 6

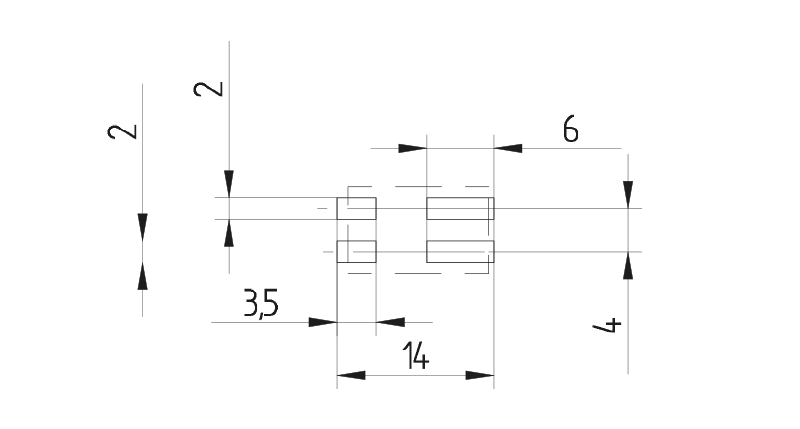

General note: It is recommended to make an electrical connection between both poles of each polarity on the solder pad..

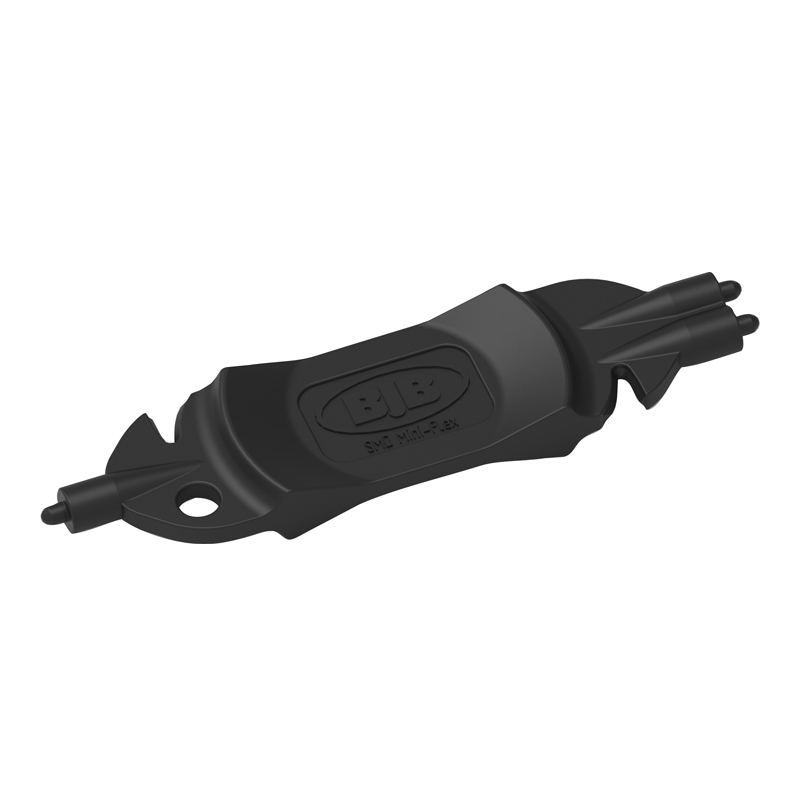

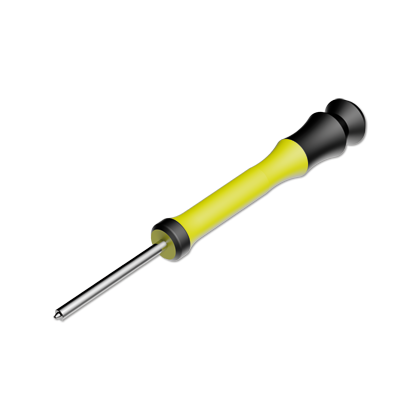

To operate the contact opening function, we recommend the use of our tools 46.131.U802 and 46.131.E397.
For further technical data, please refer to the technical data sheet under menu item downloads.

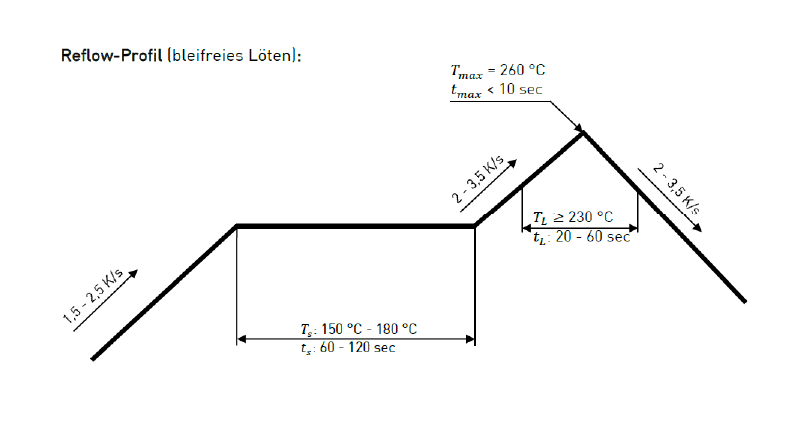

Instructions for soldering process
Suitable for leadfree-reflow-profiles according to DIN EN 61760-1 respective DIN EN 60068-2-58 up to peak-temperature of max. 260°C. Due to different application-specific parameters (component arrangement and alignment, soldering system, solder paste), it is recommended to use test runs to determine a suitable profile under production conditions.
Depending on the SMD soldering process and associated parameters a minor discoloration might occur. However, this will not influence the functionality.
| Color: | white |
|---|---|
| Conductor cross-section: | Eindrähtige Leiter / Solid wires: 0,20 - 0,75 mm² AWG 24-18; Feindrähtige, verzinnte Leiter / Stranded, tinned wires: 0.20 - 0.5 mm², AWG 24-20; Feindrähtige Leiter / Stranded wires: 0.20 - 0.75 mm², AWG 24-18 |
| Connector: | push wire contact |
| Country of origin: | DE |

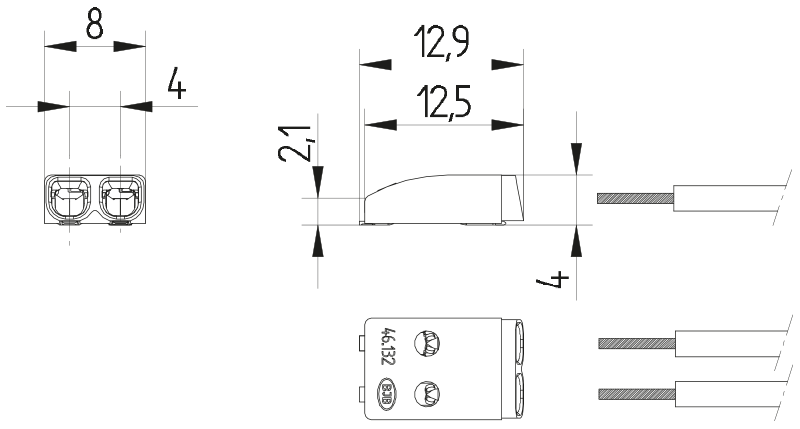

| Height: | 4 mm / 0.16 inch |
| Height (build in): | 4 mm |
| Length: | 12.9 mm / 0.51 inch |
| Material: | Housing: PPA, white; Contact material: CuNi; Contact surface: hot-dip tinned |
| Note warranty conditions: | *Warranty conditions of BJB GmbH & Co. KG as stated as available via the Internet under https://www.bjb.com/en/legal-information/general-terms-and-conditions/ are valid. |
| Number of poles: | 2 |
| Packaging quantity: | 22750 |
| Producttype: | MiniFlex SMD Terminal Blocks |
| Series: | MiniFlex SMD Terminal Blocks |
| Table for product detail view: | 1 |
| Temperature rating: | Ambient temperature from -40°C to 125°C |
| Weight: | 0,4 g |
| Width: | 8 mm / 0.32 inch |
| Wiring: | PCB top side |
| mounting method 1: | Solder fixing |
| old article number: | 46.132.2001.50 |
Certifications
| Article Number | Status | Description | Documents |
|---|---|---|---|
| 46.132.2001-0 | ENEC_Zeichen-ENEC_Approval4628953 | ||
| 46.132.2001-0 | cURus,_gültig_für_USA_und_Kanada-cURus_(USA_and_Kanada)4268179 |
-
-
0.20-0.50 mm², AWG 24-20
-
0,20-0,75 mm², AWG 24 -18
-
Ø < 2.1 -2.7 mm = 9+1 mm
-
-
-
0.20 - 0.75mm²AWG 24 - 18

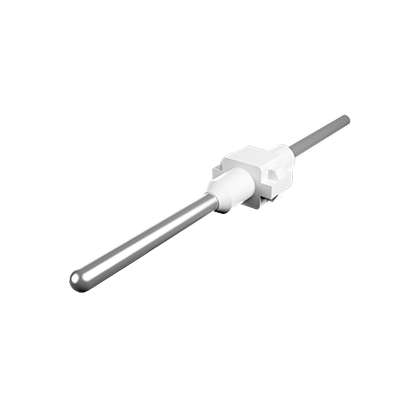

Accessories
