P2F SMD P 1.8-2.9
Article number:
28.904.U102-0
EAN:
4049853
Product information "P2F SMD P 1.8-2.9"
• No additional screw-fixing assembly required
• Permanent, constant contact pressure with a minimum pressure force of 5 N

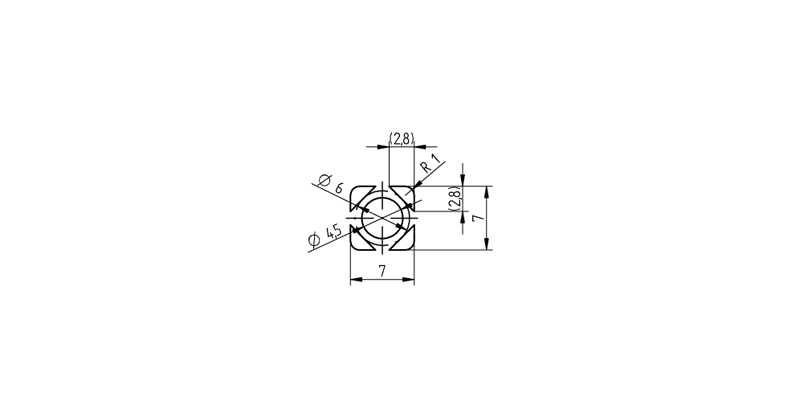

• Suitable for standardized hole patterns with ø 4.5 mm in the LED module
• For luminaire metal sheet cut-out: ø 3,0 +0,2 mm
• Reliable heat dissipation due to constant contact pressure
• Suitable for manual and automatic final installation
• Automated assembly solution on request
• Low-profile component prevents shadowing
• Alternative to screw fixing => no torque screwdriver required
• Quick installation process increases productivity and reduces production costs
• Tape and reel packaging
• Low insertion force prevents possible damage which may occur with screw fixing
• Releasable connection
• Permanent, constant contact pressure with a minimum pressure force of 5 N
• Suitable for standardized hole patterns with ø 4.5 mm in the LED module
• For luminaire metal sheet cut-out: ø 3,0 +0,2 mm
• Reliable heat dissipation due to constant contact pressure
• Suitable for manual and automatic final installation
• Automated assembly solution on request
• Low-profile component prevents shadowing
• Alternative to screw fixing => no torque screwdriver required
• Quick installation process increases productivity and reduces production costs
• Tape and reel packaging
• Low insertion force prevents possible damage which may occur with screw fixing
• Releasable connection
| Material: | Spring: CrNi, Solder plate: CuSn |
|---|---|
| Note warranty conditions: | *Warranty conditions of BJB GmbH & Co. KG as stated as available via the Internet under https://www.bjb.com/en/legal-information/general-terms-and-conditions/ are valid. |

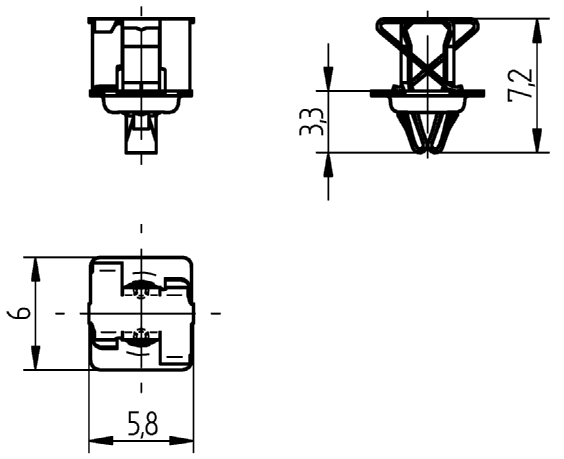

| Package thickness (X): | 1.8 - 2.9 mm |
| Packaging quantity: | 12600 |

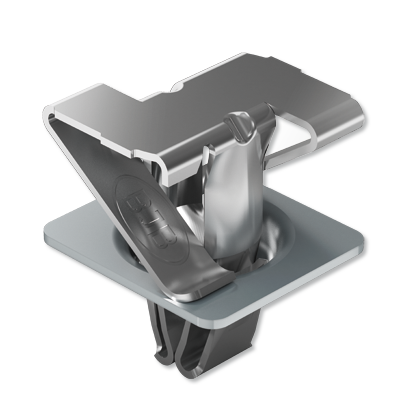

| Producttype: | P2F SMD Solderable Fixing Element for PCBs |
| Series: | P2F SMD Solderable Fixing Element for PCBs |

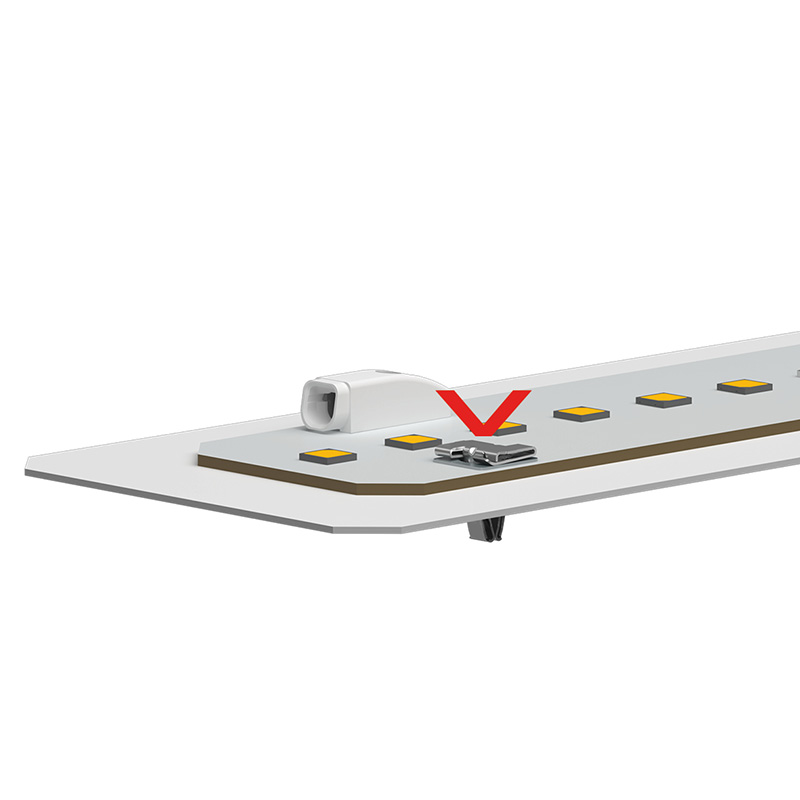

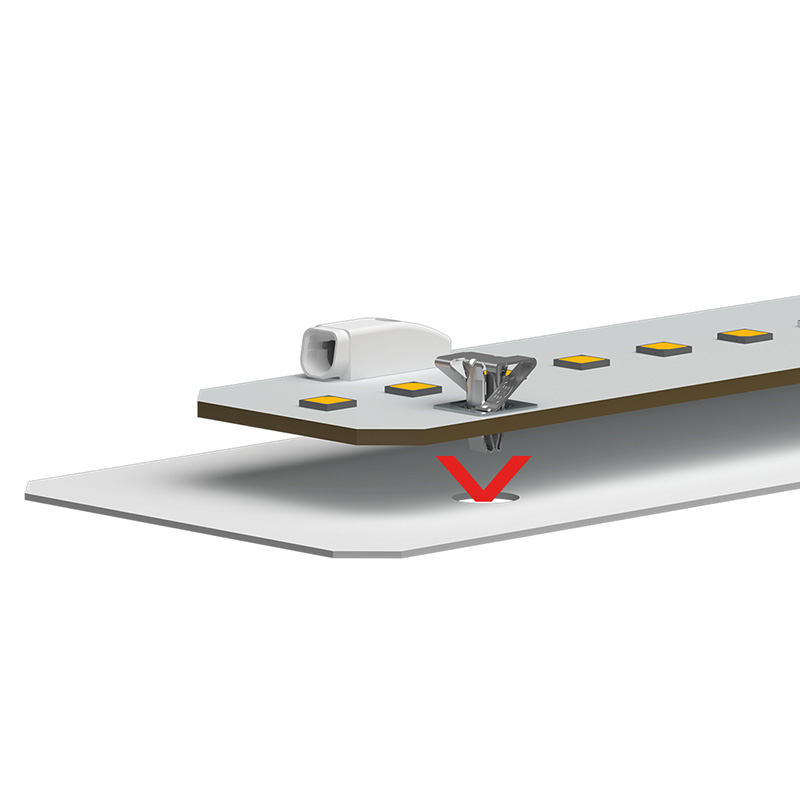

| Suitable for: | for simplified final installation of LED boards by means of pre-attached P2F |

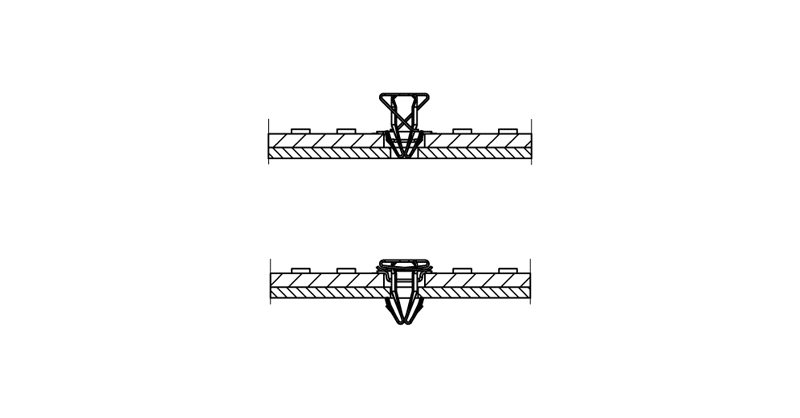

| mounting method 1: | Push-in fixing for mounting PCBs |
| old article number: | 28.904.U102.10 |
Available Downloads
Certifications
| Article Number | Status | Description | Documents |
|---|

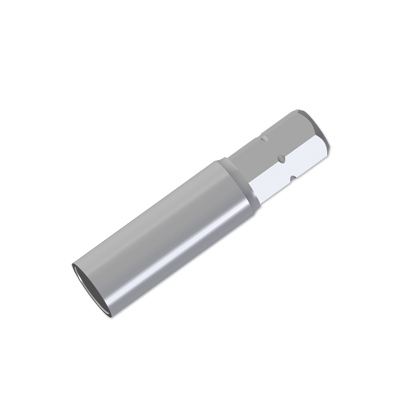

Accessories
