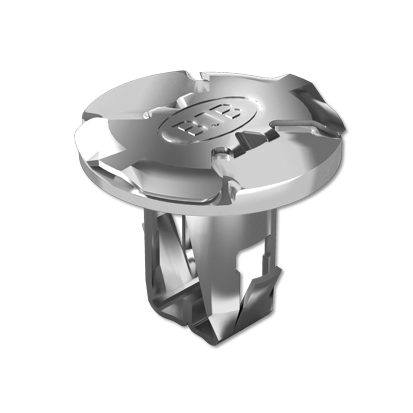

P2F (Push-to-Fix) Fixing element for LED modules
Article number:
28.901.U169-0
EAN:
4049853
Product information "P2F (Push-to-Fix) Fixing element for LED modules"
Provides consistent and constant contact pressure by elastic silicone ring
Contact pressure: min. 5 N
• Quick assembly process improves production efficiency and reduces production costs
• Eliminates potential damage from screw fixing due to low insertion forces
• CrNi and silicone materials ensure long life reliability
• Reliable heat dissipation due to a constant pressure
• Suitable for Zhaga standardised hole sizes of ø 4.7 mm in LED modules to ensure future proofed designs

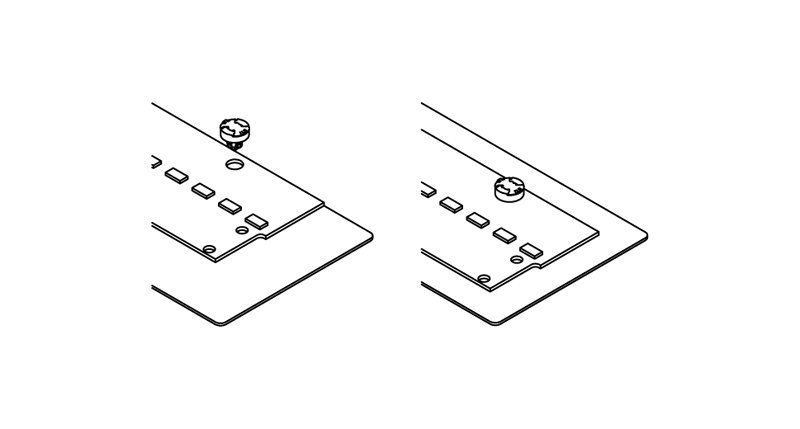

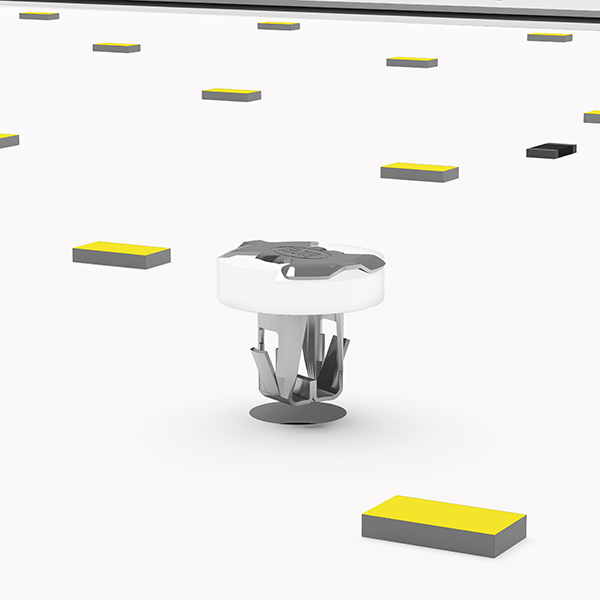

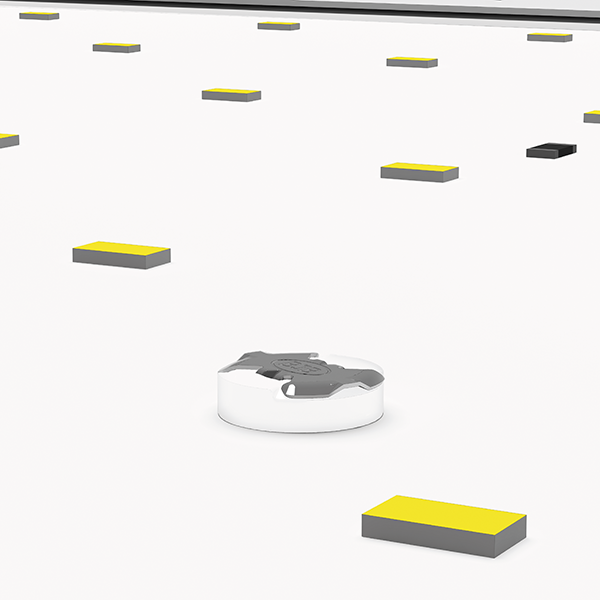

• Assembly without any additional tools
• Solutions for Automation upon request
• Removable connection
| Color: | transparent gray |
|---|---|
| Country of origin: | DE |
| Material: | CrNi with silicone ring |
| Note warranty conditions: | *Warranty conditions of BJB GmbH & Co. KG as stated as available via the Internet under https://www.bjb.com/en/legal-information/general-terms-and-conditions/ are valid. |

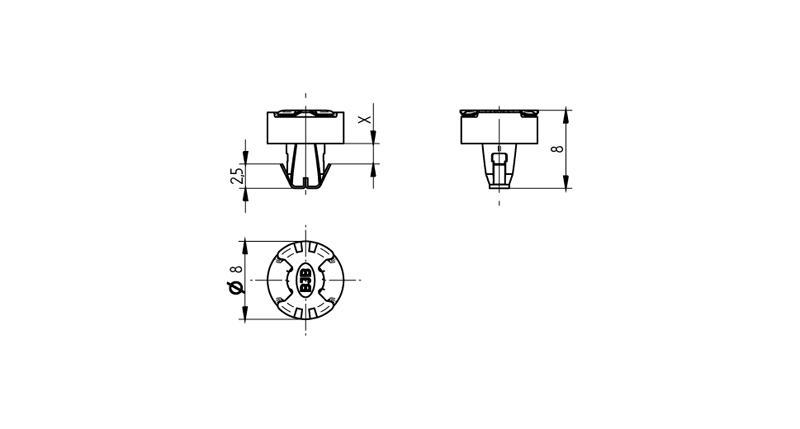

| Package thickness (X): | 4.0 mm |
| Packaging quantity: | 5000 |
| Producttype: | P2F Silicone Fixing Elements for PCBs |
| Series: | P2F Silicone Fixing Elements for PCBs |
| Suitable for: | for PCBs, LED modules |
| Type of packaging: | Bag |
| Weight: | 0,25 g |
| mounting method 1: | Push in fixing: for hole pattern ø 4.2 mm |
| old article number: | 28.901.U169.10 |
