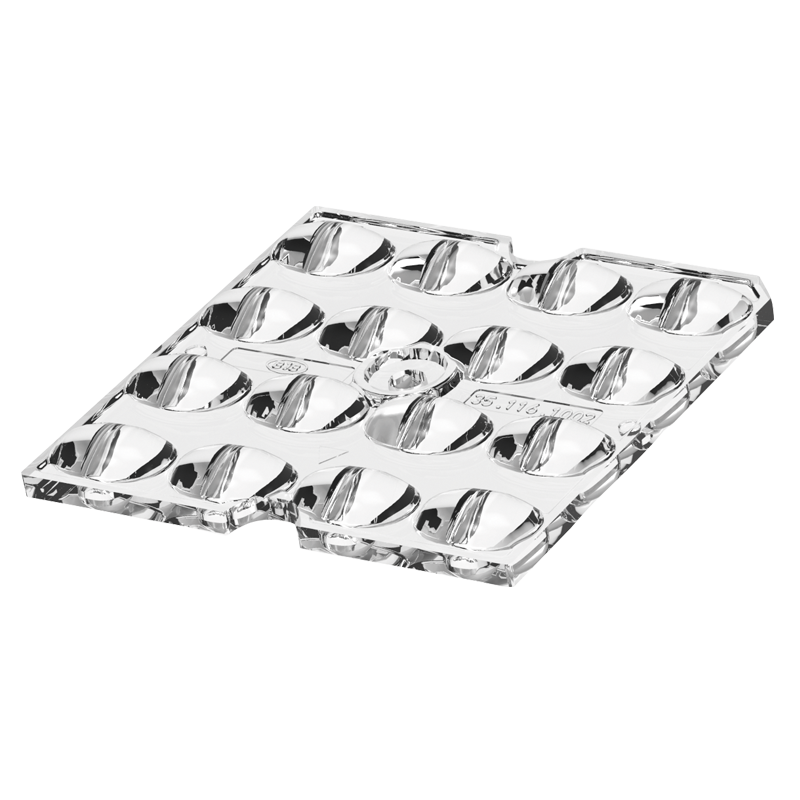

OptiSquare 4x4 - IESNA Type 2
Article number:
35.116.1002-0
EAN:
4049853
Product information "OptiSquare 4x4 - IESNA Type 2"
Typical application:
• Walkways, paths and sidewalks
• Entrance roadways
• Loading and access ramps
• General road and street lighting
• Car parks and parking area lighting
• Perimeter of parking areas
• Center of roadways and intersections
• Walkways, paths and sidewalks
• Entrance roadways
• Loading and access ramps
• General road and street lighting
• Car parks and parking area lighting
• Perimeter of parking areas
• Center of roadways and intersections
| Ausführung: | according to Zhaga Book 15 |
|---|---|
| Color: | clear |

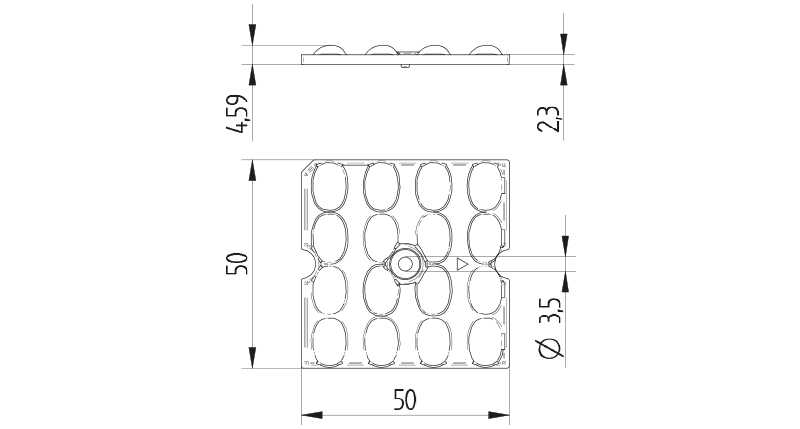

| Height: | 4.59 mm |
| Length: | 50 mm |

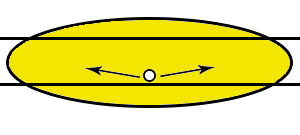

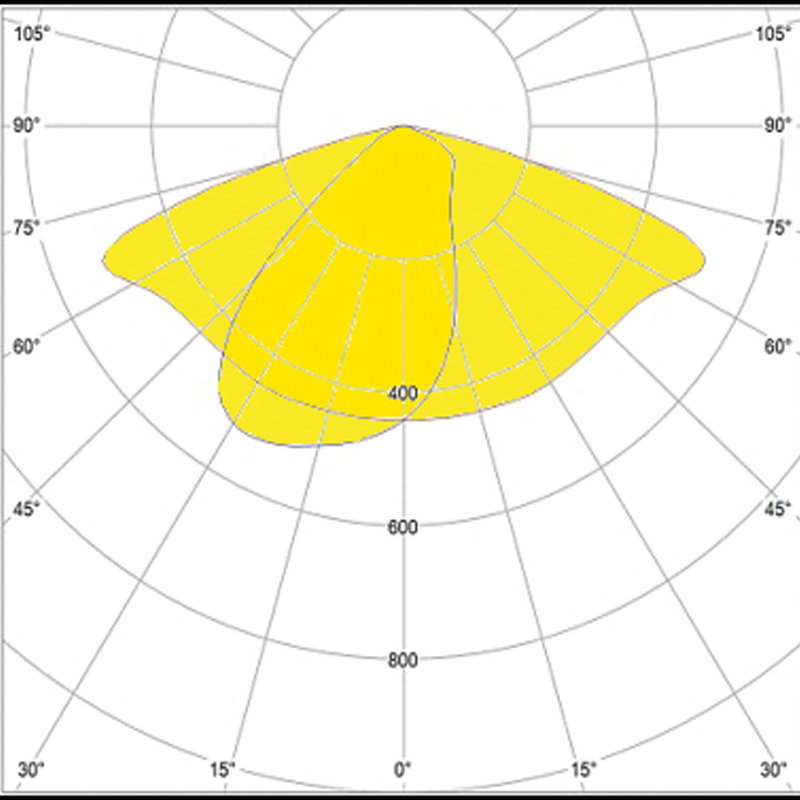

| Light Distribution: | IESNA Type 2 |
| Material: | PMMA |
| Note warranty conditions: | *Warranty conditions of BJB GmbH & Co. KG as stated as available via the Internet under https://www.bjb.com/en/legal-information/general-terms-and-conditions/ are valid. |
| Operating temperature: | -40°C up to +80°C |
| Packaging quantity: | 200 |
| Pitch distance: | 12.5 mm |
| Producttype: | 4x4 Optics for Street, Area and Highbay Lighting |
| Series: | 4x4 Optics for Street, Area and Highbay Lighting |
| Suitable for: | Suitable for LED chips 3030, 2835 and LED modules according to Zhaga Book 15 |
| Surface: | Lens surface: highly polished |
| Weight: | 8,2 g |
| Width: | 50 mm |
| mounting method 1: | Screw fastening: screws M3 |
| old article number: | 35.116.1002.85 |
