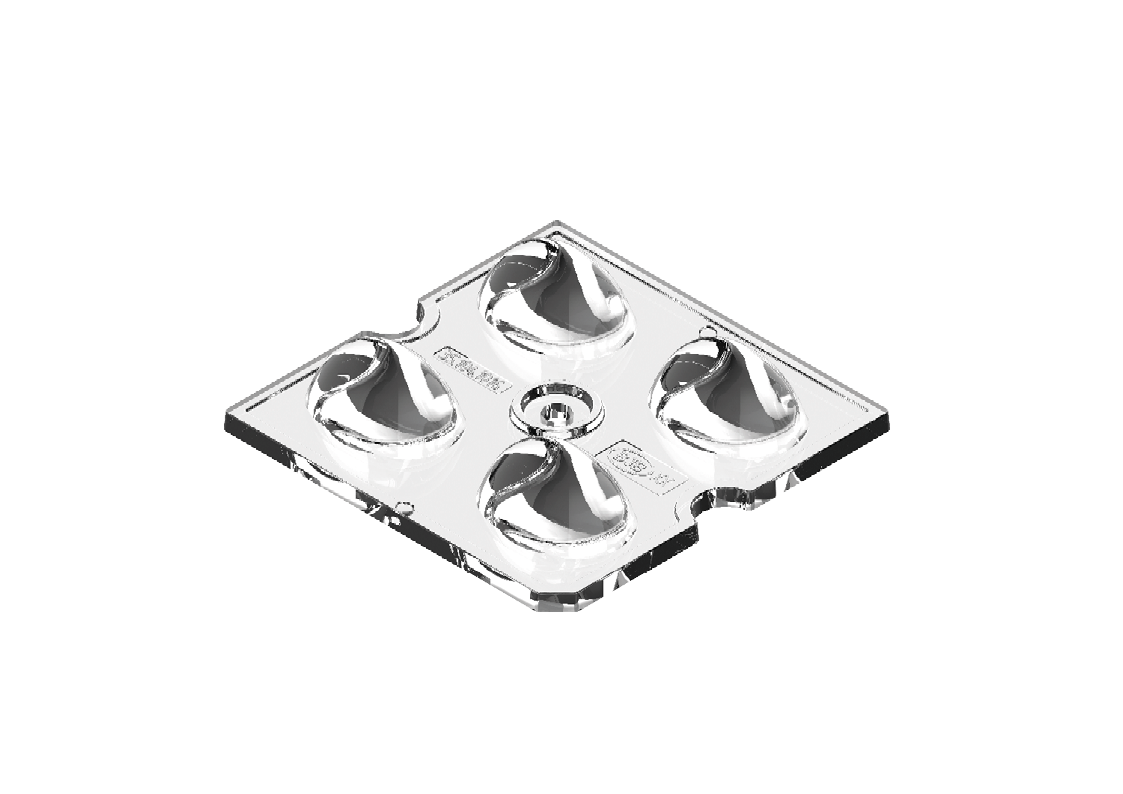

OptiSquare 2x2 - Oval
• Car parks and parking area lighting
• Perimeter of car parks and parking areas
• Industrial lighting such as high-bay warehouses, packaging and shipping halls, production halls
Application areas: | Highbay- and area Lighting |
---|---|
Ausführung: | according to Zhaga Book 15 |
Color: | clear |

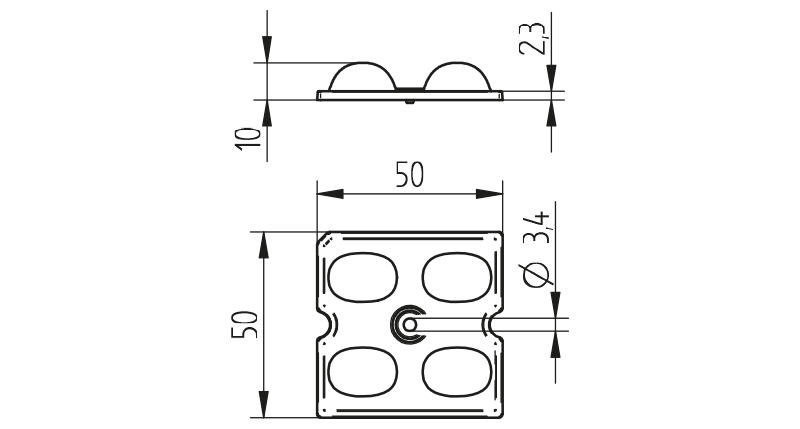

Form: | 2 x 2 |
Height: | 10 mm |
Length: | 50 mm |

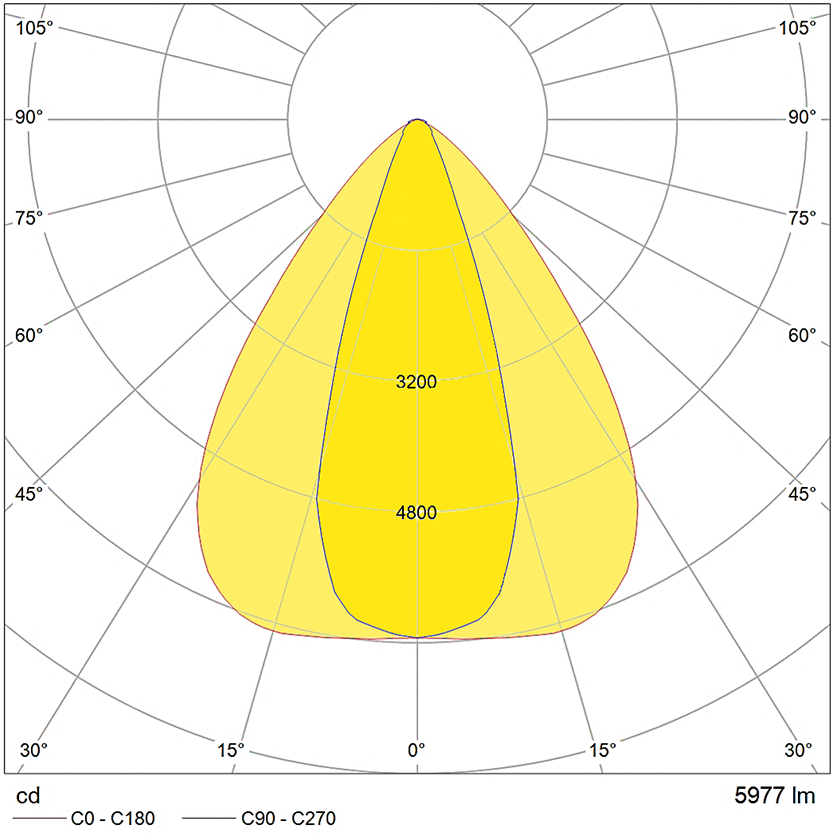

Light Distribution: | Oval |
Material: | PMMA |
Note warranty conditions: | *Warranty conditions of BJB GmbH & Co. KG as stated as available via the Internet under https://www.bjb.com/en/legal-information/general-terms-and-conditions/ are valid. |
Operating temperature: | -40 °C up to + 75 °C |
Optical efficiency: | 96 % |
Packaging quantity: | 840 |
Pitch distance: | 25.4 mm |
Producttype: | 2x2 Optics for Street, Area and Highbay Lighting |
Series: | 2x2 Optics for Street, Area and Highbay Lighting |
Suitable for: | Philips Fortimo FastFlex LED 2x6 / 740 DA HEand LED modules with 25.4 mm pitch distance according to Zhaga Book 15 |
Surface: | Lens surface: highly polished |
Weight: | 9,4 g |
Width: | 50 mm |
mounting method 1: | Screw fixing: (0.5 Nm) for screws M3 |
old article number: | 35.104.1016.85 |
