OptiSquare 2x2 - IESNA Type 2 Medium
Article number:
35.104.1010-0
EAN:
4049853
Product information "OptiSquare 2x2 - IESNA Type 2 Medium"

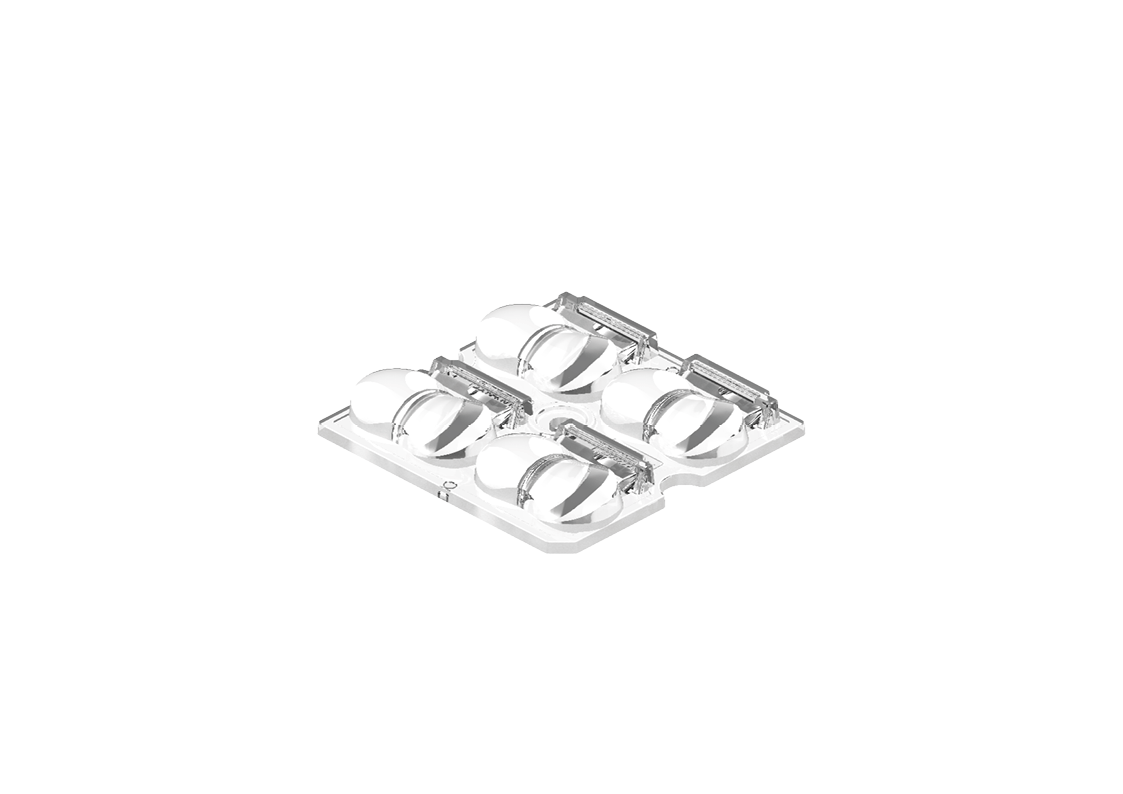

OptiSquare 2x2 - IESNA Type 2 medium
Optics for outdoor, street and area lighting, optimized for use with 50 x 50 LED boards, according to Zhaga Book 15,
Typical application:
• Walkways,paths and sidewalks
• Entrance roadways
• Loading and access ramps
• General road and street lighting
• Car parks and parking area lighting
• Perimeter of parking areas
• Center of roadways and intersections
| Application areas: | Street and Area Lighting |
|---|---|
| Ausführung: | according to Zhaga Book 15 |
| Color: | clear |
| Form: | 2x2 |

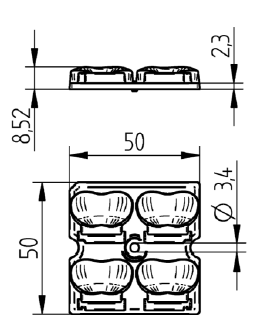

| Height: | 8.52 mm |
| Length: | 50 mm |

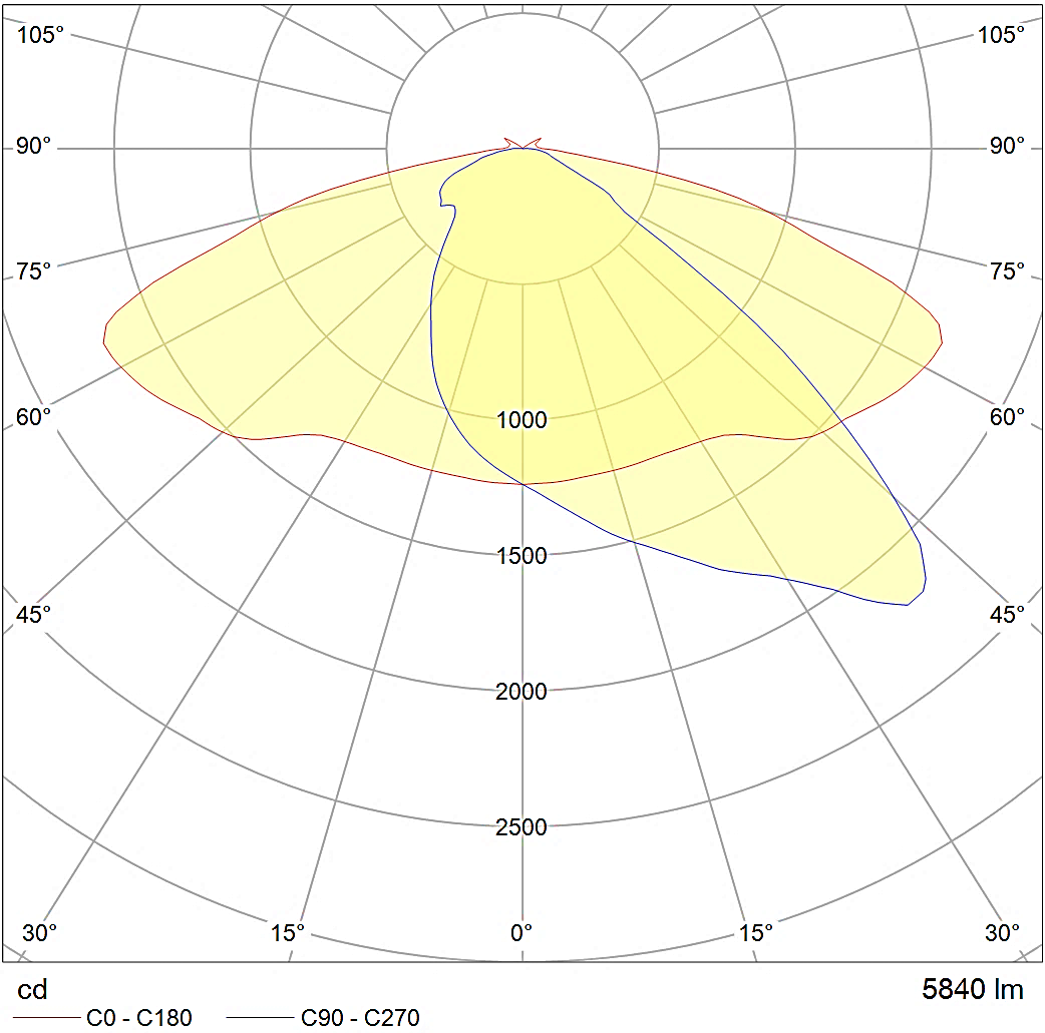

| Light Distribution: | IESNA Type 2 Medium |
| Material: | PMMA |
| Note warranty conditions: | *Warranty conditions of BJB GmbH & Co. KG as stated as available via the Internet under https://www.bjb.com/en/legal-information/general-terms-and-conditions/ are valid. |
| Operating temperature: | -40 °C up to + 75 °C |
| Optical efficiency: | n.a. |
| Other: | In development. Waiting for approval! |
| Packaging quantity: | 840 |
| Pitch distance: | 25.4 mm |
| Producttype: | 2x2 Optics for Street, Area and Highbay Lighting |
| Series: | 2x2 Optics for Street, Area and Highbay Lighting |
| Suitable for: | Philips Fortimo Fast Flex LED 2x6 DA HE andLED modules with 12.5 mm Pitch according to Zhaga Book 15 |
| Surface: | Lens surface: highly polished |
| Weight: | n,a, g |
| Width: | 50 mm |
| mounting method 1: | Screw fixing: (0.5 Nm) for screws M3 |
| old article number: | 35.104.1010.85 |
