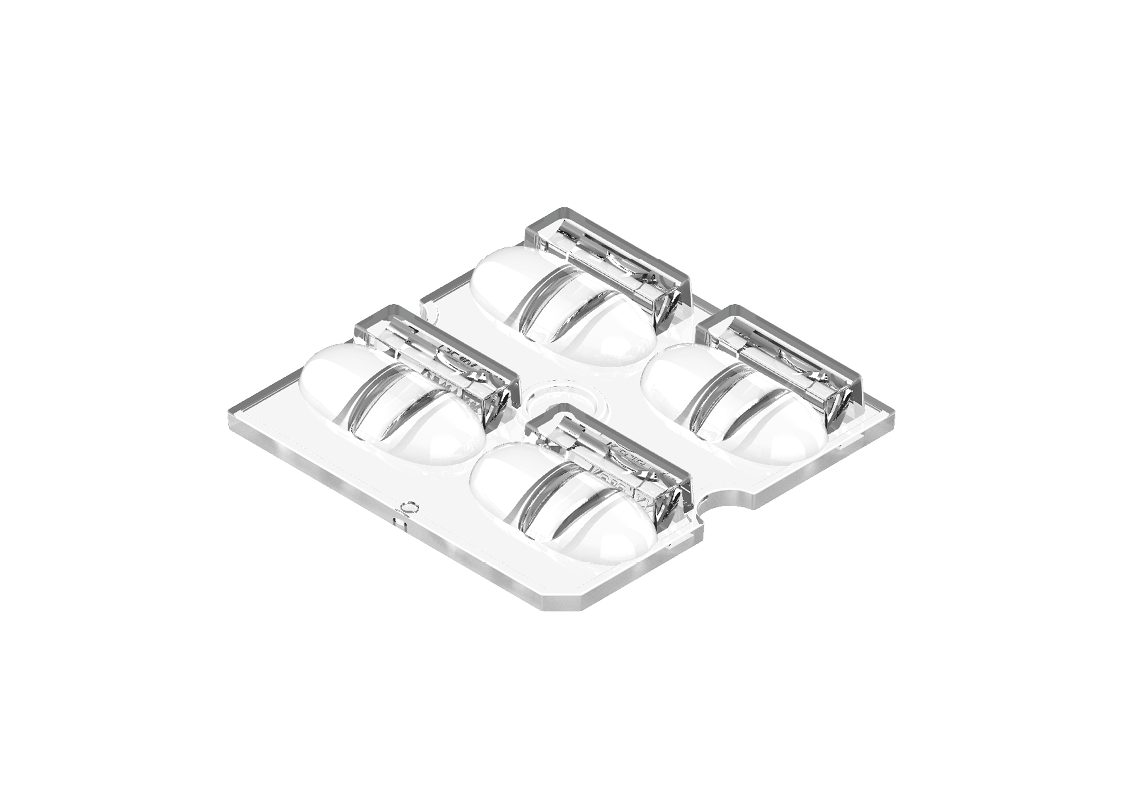

OptiSquare 2x2 - IESNA Type 2 Long
• Walkways, paths and sidewalks
• Entrance roadways
• Loading and access ramps
• General road and street lighting
• Car parks and parking area lighting
• Perimeter of parking areas
• Center of roadways and intersections
Application areas: | Street- and area Lighting |
---|---|
Ausführung: | according to Zhaga Book 15 |
Color: | clear |
Form: | 2 x 2 |

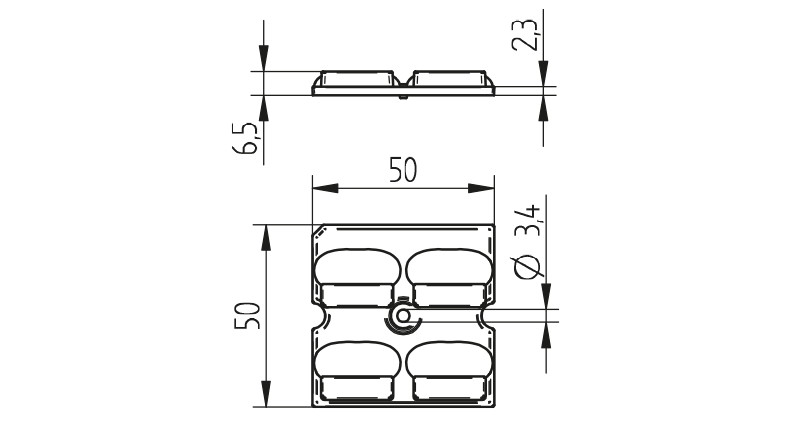

Height: | 6.5 mm |
Length: | 50 mm |

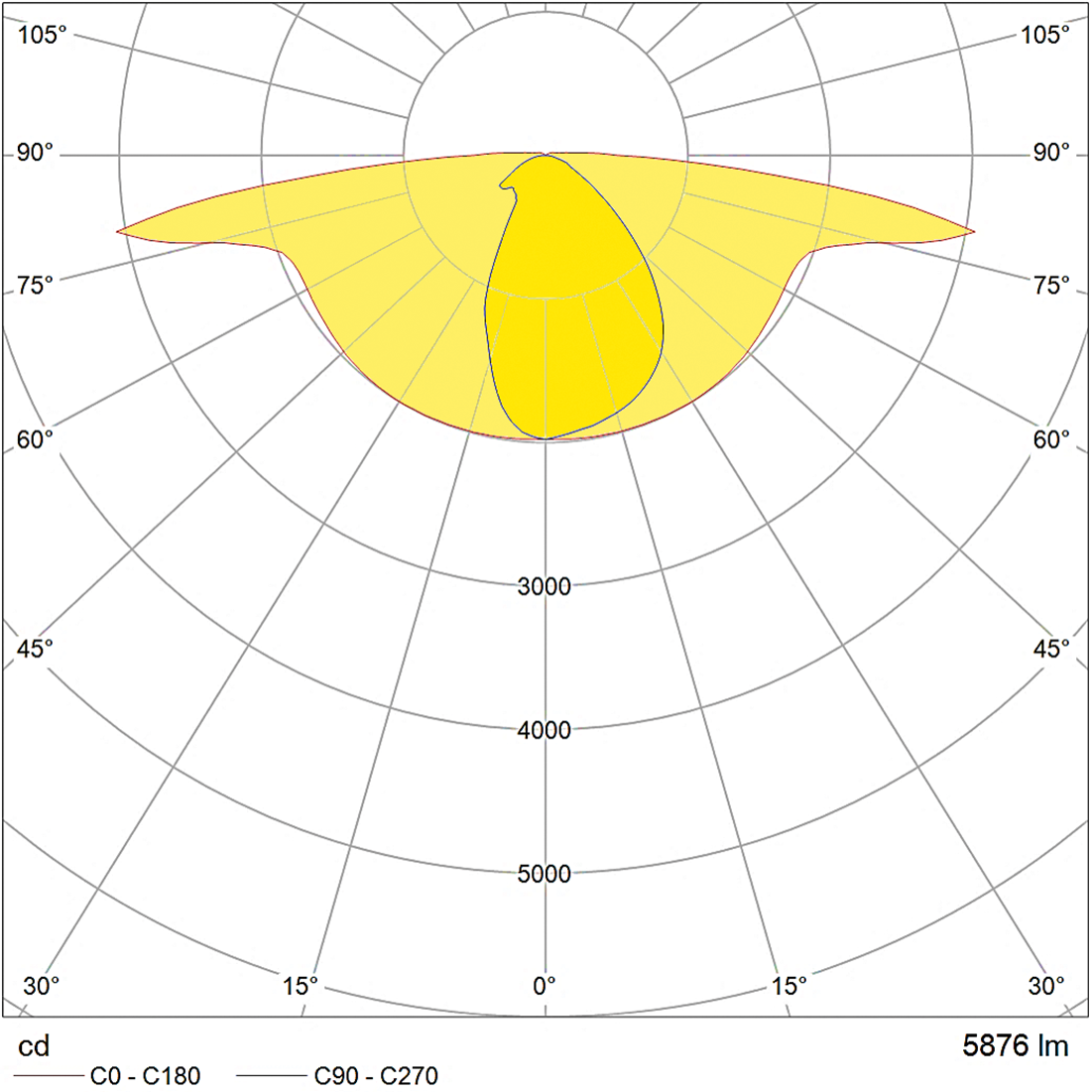

Light Distribution: | IESNA Type 3 Long |
Material: | PMMA |
Note warranty conditions: | *Warranty conditions of BJB GmbH & Co. KG as stated as available via the Internet under https://www.bjb.com/en/legal-information/general-terms-and-conditions/ are valid. |
Operating temperature: | -40 °C up to + 75 °C |
Optical efficiency: | 94 % |
Packaging quantity: | 840 |
Pitch distance: | 25.4 mm |
Producttype: | 2x2 Optics for Street, Area and Highbay Lighting |
Series: | 2x2 Optics for Street, Area and Highbay Lighting |
Suitable for: | Philips Fortimo FastFlex LED 2x6 / 740 DA HEand LED modules with 25.4 mm pitch distance according to Zhaga Book 15 |
Surface: | Lens surface: highly polished |
Weight: | 10,1 g |
Width: | 50 mm |
mounting method 1: | Screw fixing: (0.5 Nm) for screws M3 |
old article number: | 35.104.1014.85 |
