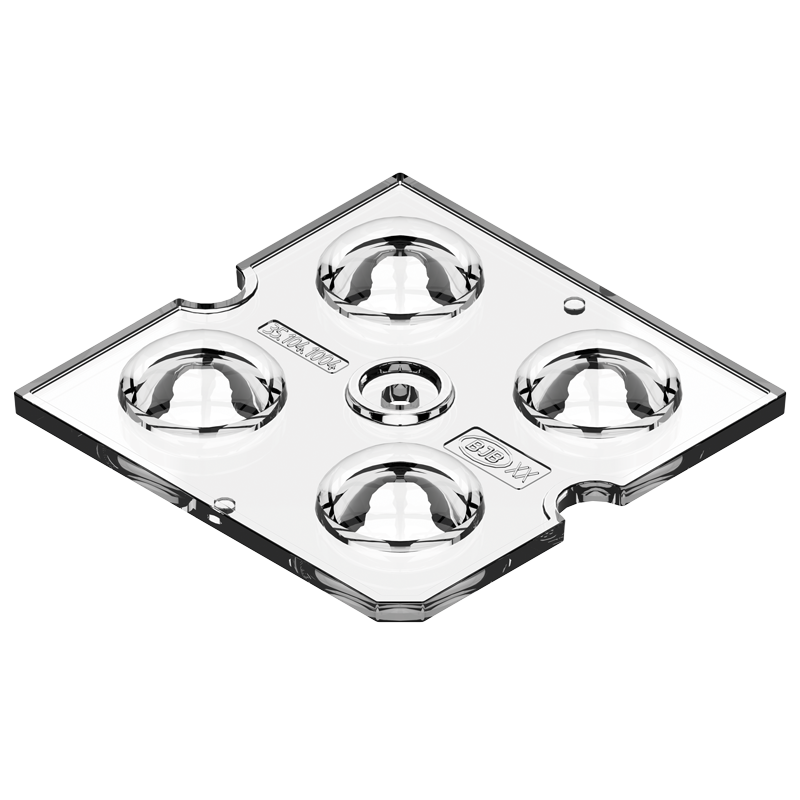

OptiSquare 2x2 - Extra wide
Article number:
35.104.1004-0
EAN:
4049853
Product information "OptiSquare 2x2 - Extra wide"
Typical application:
• Car parks and parking area lighting
• Perimeter of car parks and parking areas
• Industrial lighting such as high-bay warehouses, packaging and shipping halls, production halls
• Car parks and parking area lighting
• Perimeter of car parks and parking areas
• Industrial lighting such as high-bay warehouses, packaging and shipping halls, production halls
| Application areas: | Highbay and area lighting |
|---|---|
| Ausführung: | according to Zhaga Book 15 |
| Color: | clear |
| Form: | 2x2 |

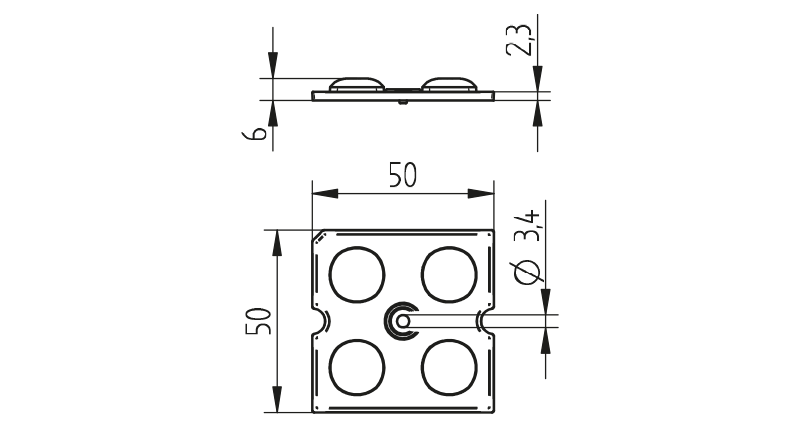

| Height: | 6 mm |
| Length: | 50 mm |

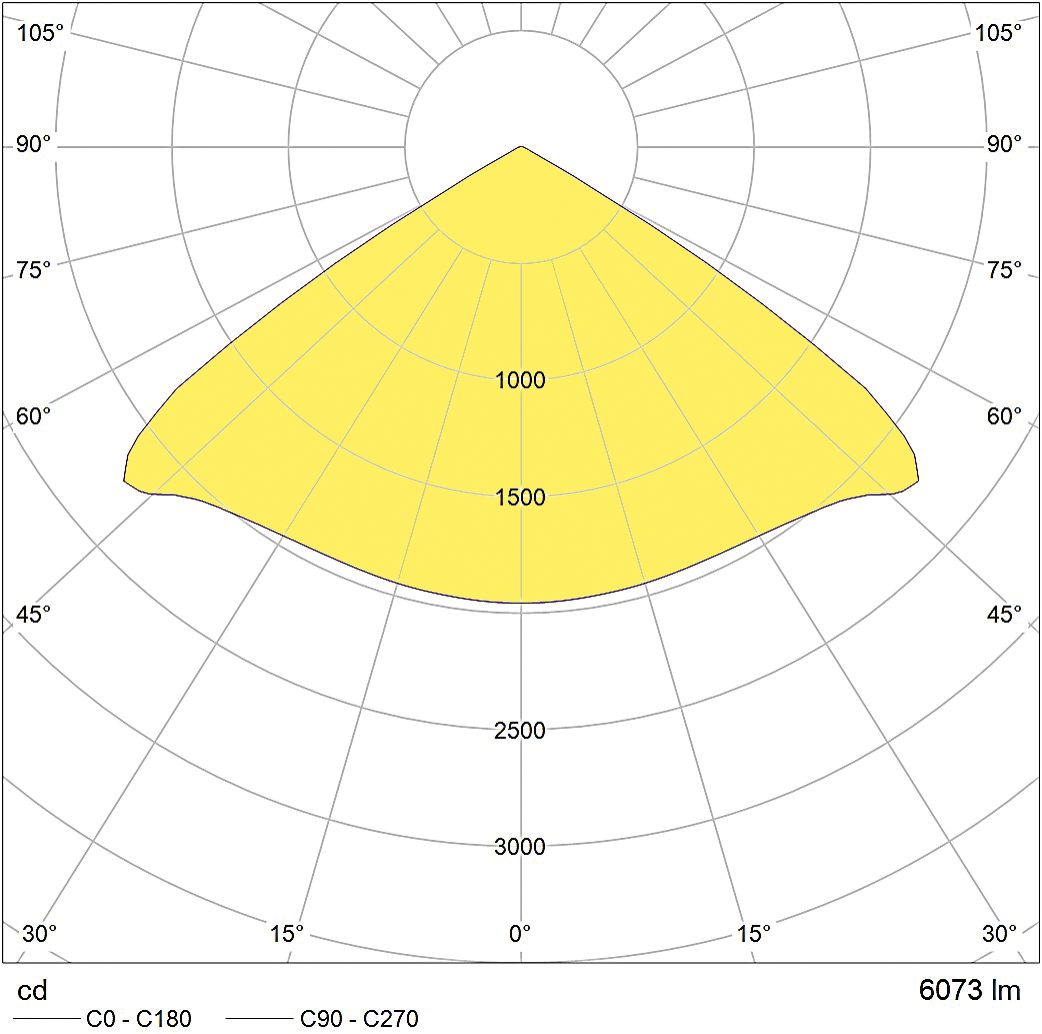

| Light Distribution: | Extra wide |
| Material: | PMMA |
| Note warranty conditions: | *Warranty conditions of BJB GmbH & Co. KG as stated as available via the Internet under https://www.bjb.com/en/legal-information/general-terms-and-conditions/ are valid. |
| Operating temperature: | -40 °C up to + 75 °C |
| Optical efficiency: | 97 % |
| Packaging quantity: | 840 |
| Pitch distance: | 25.4 mm |
| Producttype: | 2x2 Optiken für Straßen- und Flächenleuchten / 2x2 Optics for Street, Area and Highbay Lighting |
| Series: | 2x2 Optics for Street, Area and Highbay Lighting |
| Suitable for: | Philips Fortimo FastFlex LED 2x6 / 740 DA HEand LED modules with 25.4 mm pitch distance according to Zhaga Book 15 |
| Surface: | Lens surface: highly polished |
| Weight: | 8 g |
| Width: | 50 mm |
| mounting method 1: | Screw fixing: (0.5 Nm) for screws M3 |
| old article number: | 35.104.1004.85 |
