LED light for wet appliances New
Article number:
77.125.B001-0
EAN:
-
Product information "LED light for wet appliances"
This compact light was specifically designed for applications requiring a reliable seal and uniform light distribution, such as in dishwashers.

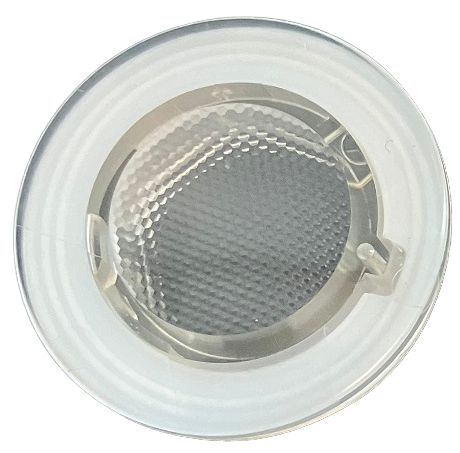

The lens, featuring a BJB honeycomb structure, ensures uniform light distribution. A white seal and a white LED circuit board reduce light absorption and support high optical efficiency.

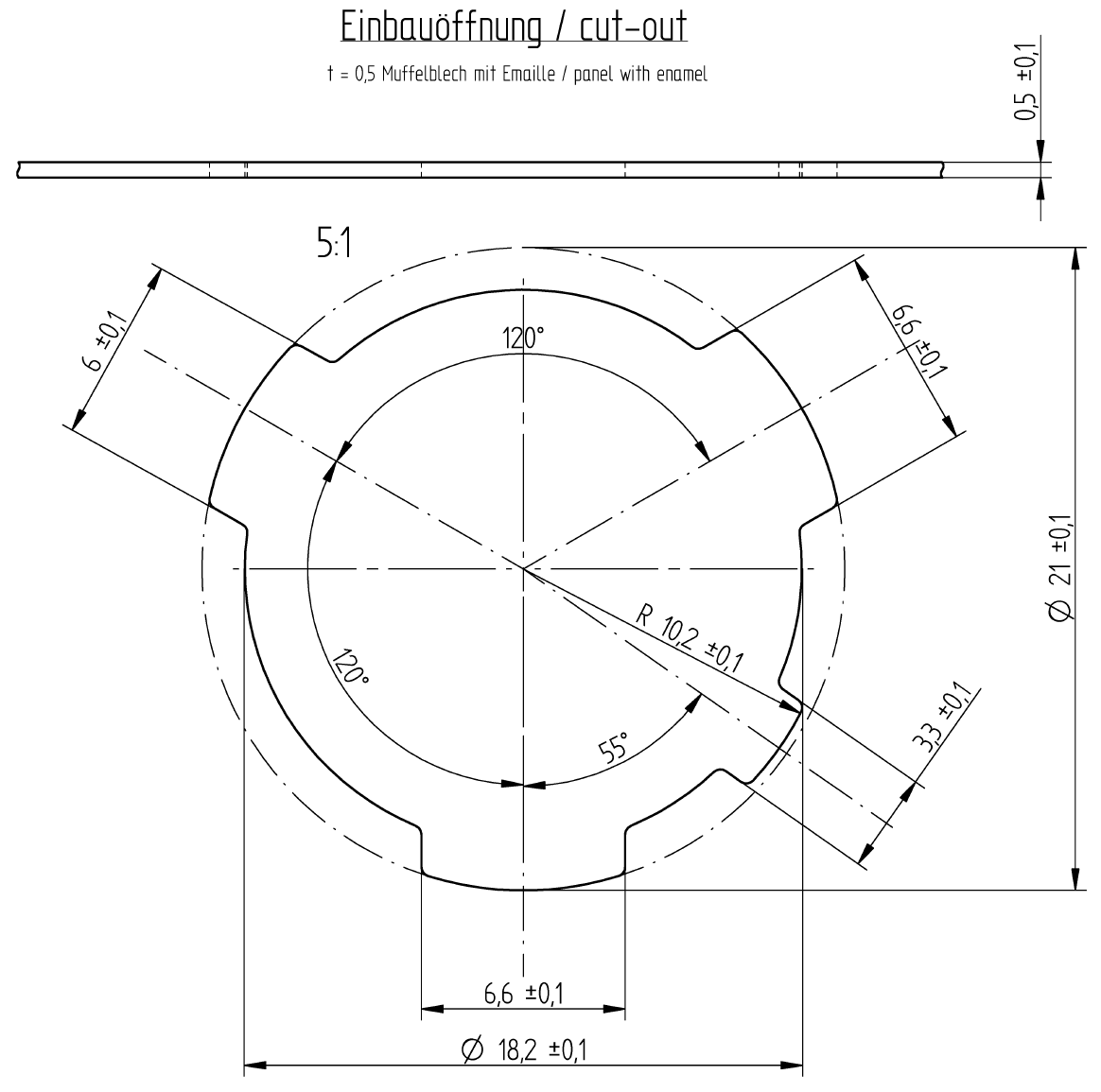

The housing and lens are secured to each other via a simple bayonet connection. The light is designed for material thicknesses of 0.5 mm ± 0.1 mm and features a release mechanism that allows for replacement during servicing. Electrical connections are made quickly and easily via an on-board connector.
The lens, featuring a BJB honeycomb structure, ensures uniform light distribution. A white seal and a white LED circuit board reduce light absorption and support high optical efficiency.
The housing and lens are secured to each other via a simple bayonet connection. The light is designed for material thicknesses of 0.5 mm ± 0.1 mm and features a release mechanism that allows for replacement during servicing. Electrical connections are made quickly and easily via an on-board connector.
| Application areas: | Dishwashers, washing machines, clothes dryers, and other humid appliance environments |
|---|---|
| Color: | White housing, transparent lens with honeycomb structure |
| Colour temperature: | 5500 K |
| Diameter: | 26,25 mm |
| Durability: | L70B50 6,000 h according to BJB test conditions. |
| LED?: | yes |
| Lamp: | LED |
| Length: | 40,5 mm |
| Luminous flux Ta25° C If typical: | 47 lm |
| Material: | PA |
| Max. Temperature at Tc point: | 110°C |
| Note warranty conditions: | *Warranty conditions of BJB GmbH & Co. KG as stated as available via the Internet under https://www.bjb.com/en/legal-information/general-terms-and-conditions/ are valid. |
| Operating mode: | Constant Voltage |
| Operating voltage: | 5 V |

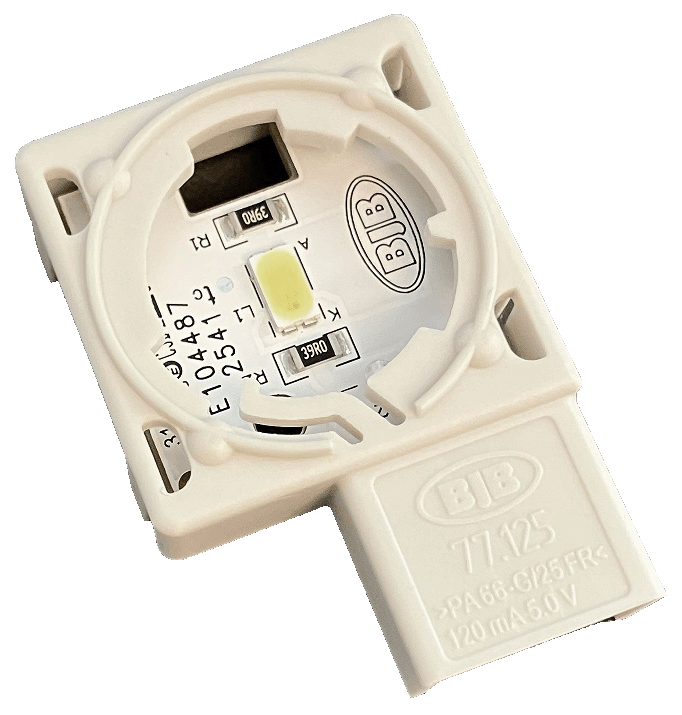

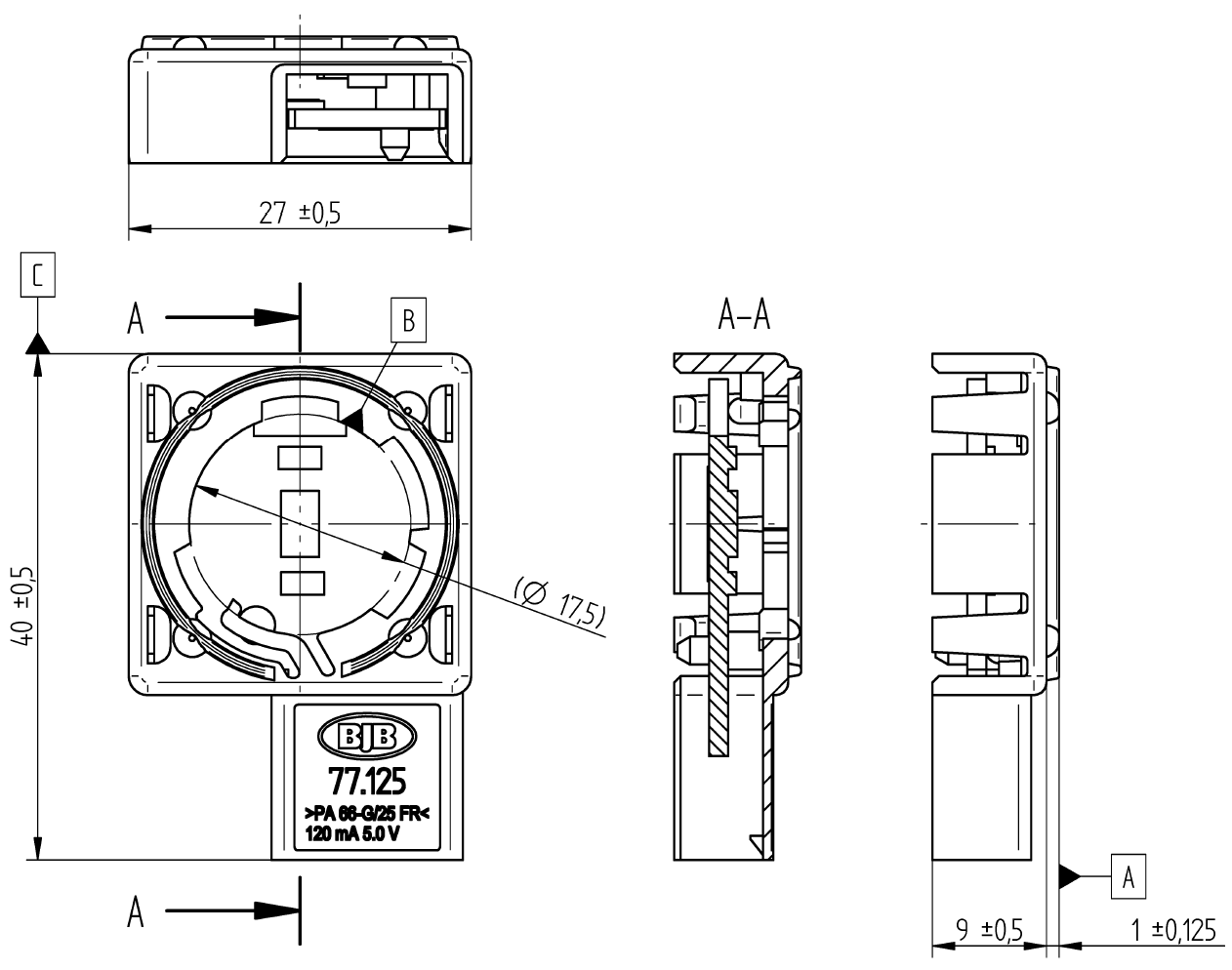

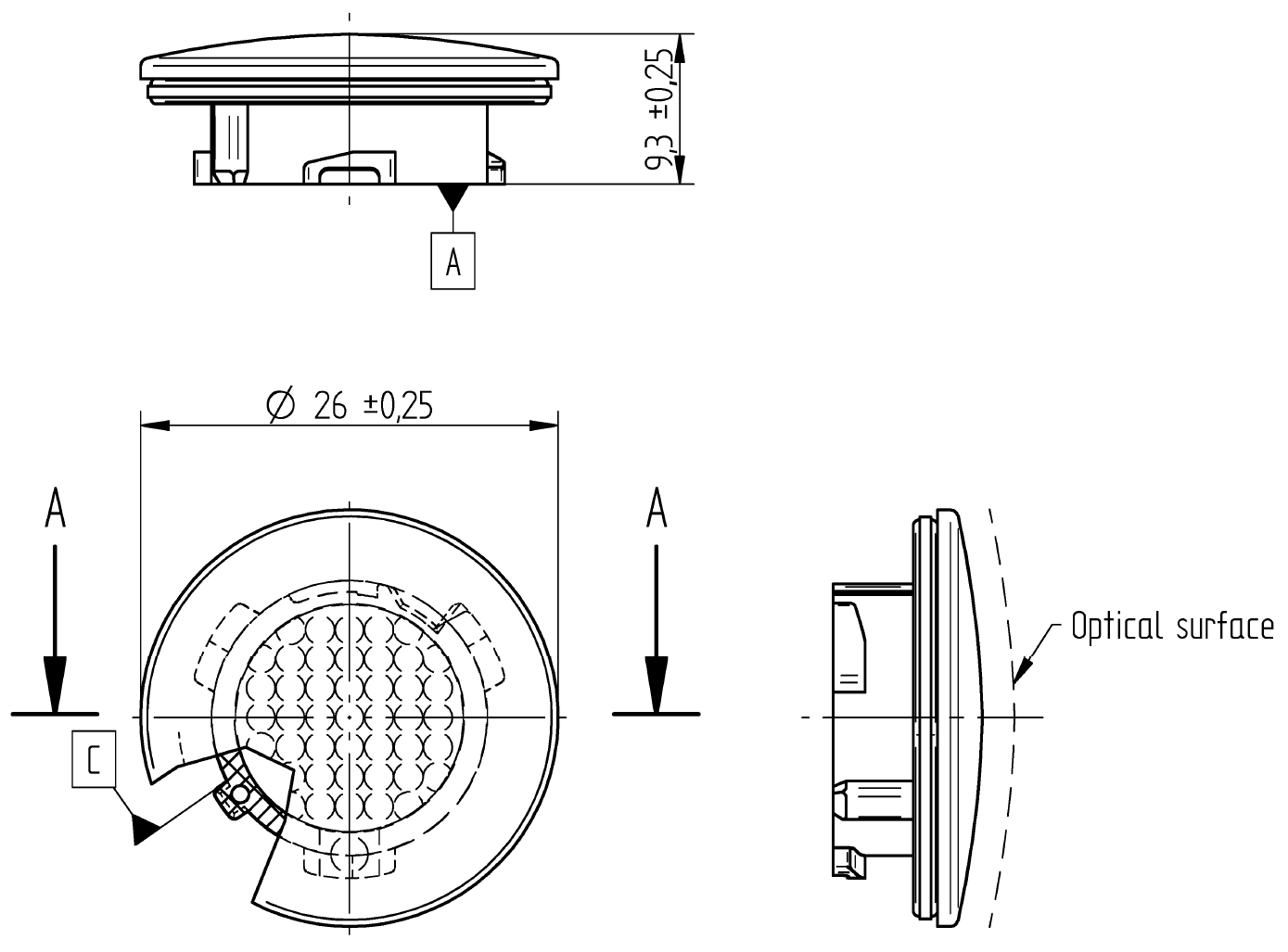

| Other: | LED light for wet appliances – Set consisting of LED Module 77.125.U105-0 and Lens with gasket 77.125.U104-0 |
| Output: | 0.55 W |
| Packaging quantity: | 1 |
| Plug/socket: | Compatible with STOCKO ECO-TRONIC 7234 |
| Producttype: | LED Luminaire for dishwasher, washing machine and dryer |
| Seal: | Silicone |
| Series: | WET |
| Temperature: | 80°C |
| Weight: | 6,07 g |
| Width: | 27,5 mm |
