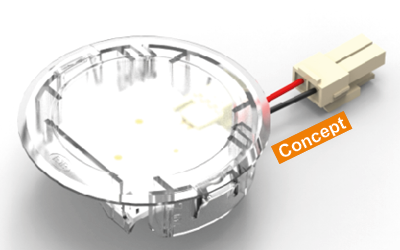

LED appliance lamp Round ø 51
Article number:
77.104.1001-0
EAN:
4049853
-
-
0,5 - 1,0
Product information "LED appliance lamp Round ø 51"
Suitable as halogen replacement and easy exchange by standardised cut-out with Ø = 51 mm
Easy installation by snap-in fixing
Safe mounting by coding
Variable LED parameters (light color, type, power)
Connection and wires on request
Protection class III by operating with SELV voltage
IP20
Max. temperature of cooker hood (bottom side): 100°C
The choise of our products, as well as the technical correct installation in accordance with the relevant regulations (for example IEC 60598 / VDE 0711, IEC 60335 / VDE700) is the sole responsible of the user
Easy installation by snap-in fixing
Safe mounting by coding
Variable LED parameters (light color, type, power)
Connection and wires on request
Protection class III by operating with SELV voltage
IP20
Max. temperature of cooker hood (bottom side): 100°C
The choise of our products, as well as the technical correct installation in accordance with the relevant regulations (for example IEC 60598 / VDE 0711, IEC 60335 / VDE700) is the sole responsible of the user
| Application areas: | Home |
|---|---|
| Colour temperature: | 3000 K |
| Forward current (lf): | 160 mA |
| LED?: | yes |
| Lamp: | LED, 1.9 W |
| Material: | PC |
| Max. Temperature at Tc point: | max. 100° C |
| Mounting cutout: | 51 mm |
| Note warranty conditions: | *Warranty conditions of BJB GmbH & Co. KG as stated as available via the Internet under https://www.bjb.com/en/legal-information/general-terms-and-conditions/ are valid. |
| Packaging quantity: | 1 |
| Power consumption (W) at Tc 50° C: | 1.9 W |
| Producttype: | LED Luminaire for cooker hoods and refridgerators |
| Protection class: | Class III due to operation with SELV power source |
| Series: | AIR |
| Storage temperature: | - 30°C bis + 45°C |
| Suitable for: | cooker hoods |
| Typical forward voltage Uf (V) +- 7%: | 12V CV |
| Weight: | 13 g |
| Wire length: | 100 mm |
| Wires: | FEP, 0.35 mm2 |
| directional characteristic: | Symmetrical |
| mounting method: | Snap-in mounting |
| mounting method 1: | Snap-in mounting |
| old article number: | 77.104.1001.89 |
