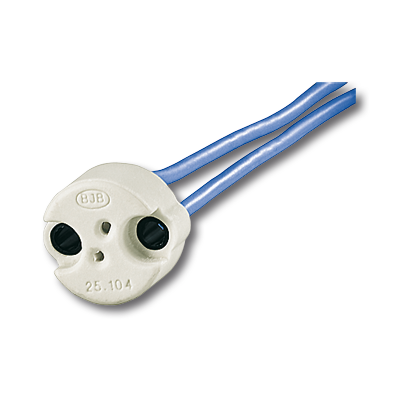

Lampholder G4
Article number:
25.104.3521-1
EAN:
4049853000016
Product information "Lampholder G4"
- The method of wiring must be such that no stress or bending motions will be transferred to
the contacts, thus reducing the contact / pressure on the lamp pins.
- cURus: File E-93328
the contacts, thus reducing the contact / pressure on the lamp pins.
- cURus: File E-93328
| Ausführung: | G4 / Connector GZ4 |
|---|---|
| Color: | anthracite (black/gray) |
| Connector: | Rear leads |
| Halogen lamps-low voltage: | G4 |
| Material: | Housing: Ceramic / PPSContacts: Ni |
| Note warranty conditions: | *Warranty conditions of BJB GmbH & Co. KG as stated as available via the Internet under https://www.bjb.com/en/legal-information/general-terms-and-conditions/ are valid. |
| Packaging quantity: | 500 |
| Producttype: | G4 / Connector GZ4 |
| ROHS REACH Information: | This product contains the following REACH SVHC substances:Siloxanes D4 D5 D6 in wires with silicone insulationFor more information, please refer to:https://www.bjb.com/en/Information-RoHS/REACH |
| Series: | Low Voltage Halogen Lampholders |
| Weight: | 8 g |
| Wires: | Cu, tin-plated, 0.75 mm², with ferrule, Insulation: silicone (max. 180° C), lead length: 140 mm |
| mounting method 1: | Screw mount |
| old article number: | 25.104.3521.90 |
Available Downloads
Available CAD Downloads
Certifications
| Article Number | Status | Description | Documents |
|---|---|---|---|
| 25.104.3521-1 | Genehmigung_liegt_vor_--Approval_at_hand_-4805042 | ||
| 25.104.3521-1 | Genehmigung_liegt_vor_--Approval_at_hand_-750450 | ||
| 25.104.3521-1 | ENEC_Zeichen_--ENEC_Approval_-689086 | ||
| 25.104.3521-1 | Genehmigung_liegt_vor_--Approval_at_hand_-3497946 |
