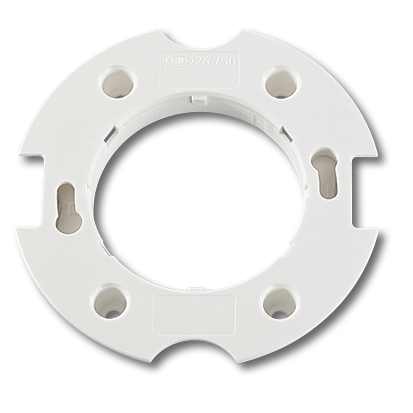

Lampholder for LED Modules GX53-1
Article number:
26.750.1004-0
EAN:
-
-
0,5 - 1,0 mm²
-
-
-
-
18 AWG0,5 - 1,0 mm²
-
max. ø 1,8 mm
Product information "Lampholder for LED Modules GX53-1"
For cheese head screws ISO 1207 - M3
| Base: | GX53 |
|---|---|
| Color: | white |
| Material: | Housing: PC |
| Note warranty conditions: | *Warranty conditions of BJB GmbH & Co. KG as stated as available via the Internet under https://www.bjb.com/en/legal-information/general-terms-and-conditions/ are valid. |
| Packaging quantity: | 100 |
| Producttype: | Lampholders for GX53-1 LED Light Engines |
| Series: | Lampholder for GX53-1 LED Light Engines |
| Suitable for: | For LED Light Engine from Toshiba |
| T-marking: | 100 |
| UL: | yes |
| Weight: | 8 g |
| approbation: | additional cURus (660W / 600V) + PSE (1A/300V) |
| mounting method 1: | Screw mount |
| old article number: | 26.750.1004.51 |
Available Downloads
Available CAD Downloads
Certifications
| Article Number | Status | Description | Documents |
|---|---|---|---|
| 26.750.1004-0 | Genehmigung_liegt_vor_--Approval_at_hand_-3677956 | ||
| 26.750.1004-0 | cURus_(USA_and_Kanada)--727859 | ||
| 26.750.1004-0 | PSE-Mark_(Japan)--1673060 | ||
| 26.750.1004-0 | ENEC_Zeichen_--ENEC_Approval_-1548022 | ||
| 26.750.1004-0 | Genehmigung_liegt_vor_--Approval_at_hand_-3265092 |
-
0,5 - 1,0 mm²
-
-
-
-
18 AWG0,5 - 1,0 mm²
-
max. ø 1,8 mm
