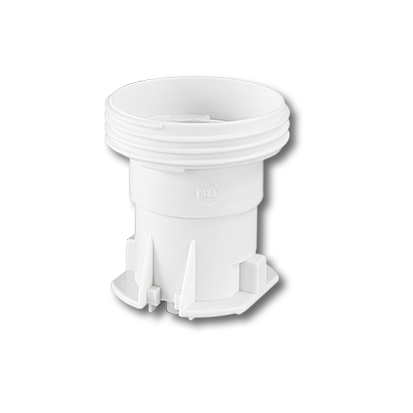

Lampholder E27
-
0,5 - 1,5 mm²
-
0,5 - 1,5 mm²
-
max. ø 1,8 mm
-
-
-
- Screw mounting: for cheese head screws - cURus: File E-111105
Ausführung: | E27 Molded Lampholders |
---|---|
Color: | white |
Edison lamps: | E27 |
Form: | Standard Form |
Material: | Housing: PET |
Note warranty conditions: | *Warranty conditions of BJB GmbH & Co. KG as stated as available via the Internet under https://www.bjb.com/en/legal-information/general-terms-and-conditions/ are valid. |
Packaging quantity: | 250 |
Producttype: | E27 Molded Lampholders |
Series: | Incandescent Lampholders |
Weight: | 17 g |
mounting method 1: | Snap-in mounting |
mounting method 2: | Screw mount |
old article number: | 22.318.3921.50 |
Available Downloads
Available CAD Downloads
Certifications
Article Number | Status | Description | Documents |
---|---|---|---|
22.318.3921-0 | ENEC_Zeichen-ENEC_Approval686003 | ||
22.318.3921-0 | Genehmigung_liegt_vor-Approval_at_hand4788775 | ||
22.318.3921-0 | Genehmigung_liegt_vor-Approval_at_hand4070785 | ||
22.318.3921-0 | Genehmigung_liegt_vor-Approval_at_hand750695 |
-
0,5 - 1,5 mm²
-
0,5 - 1,5 mm²
-
max. ø 1,8 mm
-
-
-
