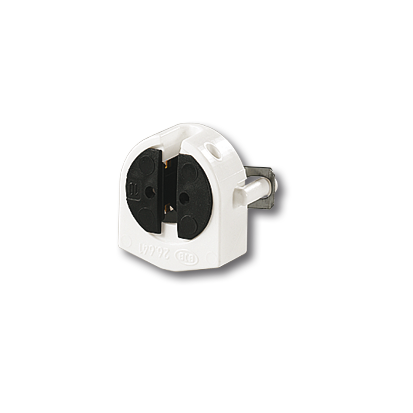

G5 (T5): Fluorescent End Mount Lampholders
-
-
-
-
0,6 - 1,0
-
-
-
-
18 AWG0,5 -1,0 mm²
-
Ausführung: | G5 (T5): End Mount Lampholders |
---|---|
Color: | white |
Luminaire wall thickness: | 0.6 - 1.0 |
Material: | Housing: PCRotor: PBT |
Note warranty conditions: | *Warranty conditions of BJB GmbH & Co. KG as stated as available via the Internet under https://www.bjb.com/en/legal-information/general-terms-and-conditions/ are valid. |
Packaging quantity: | 1000 |
Producttype: | G5 End Mount Lampholders |
Rotor: | with |
Series: | Linear Fluorescent Lampholders for dry rooms (IP20) |
T-marking: | 130 |
Top Test: | yes |
UL?: | yes |
Weight: | 3 g |
Wiring: | through the body |
approbation: | cULus |
cULus file no.: | E-92235 |
mounting method 1: | Snap-in pins with spring |
old article number: | 26.641.2002.50 |
Available Downloads
Available CAD Downloads
Certifications
Article Number | Status | Description | Documents |
---|---|---|---|
26.641.2002-0 | Genehmigung_liegt_vor-Approval_at_hand1193791 | ||
26.641.2002-0 | Genehmigung_liegt_vor-Approval_at_hand1263916 | ||
26.641.2002-0 | Genehmigung_liegt_vor-Approval_at_hand3677956 | ||
26.641.2002-0 | Genehmigung_liegt_vor-Approval_at_hand2667527 | ||
26.641.2002-0 | ENEC_Zeichen-ENEC_Approval713266 | ||
26.641.2002-0 | Genehmigung_liegt_vor-Approval_at_hand3547668 | ||
26.641.2002-0 | cULus,_gültig_für_USA_und_Kanada-cULus_(USA_and_Kanada)727851 | ||
26.641.2002-0 | Genehmigung_liegt_vor-Approval_at_hand749651 |
-
-
-
-
