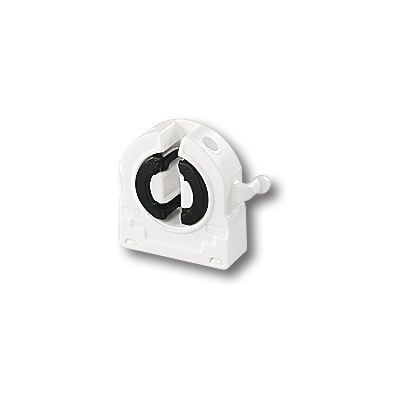

G13 Fluorescent End Mount Lampholders
-
-
-
-
-
0,5 - 1,1
-
-
-
-
18 AWG0,5 -1,0 mm²
-
Ausführung: | G13 End Mount Lampholders |
---|---|
Color: | white |

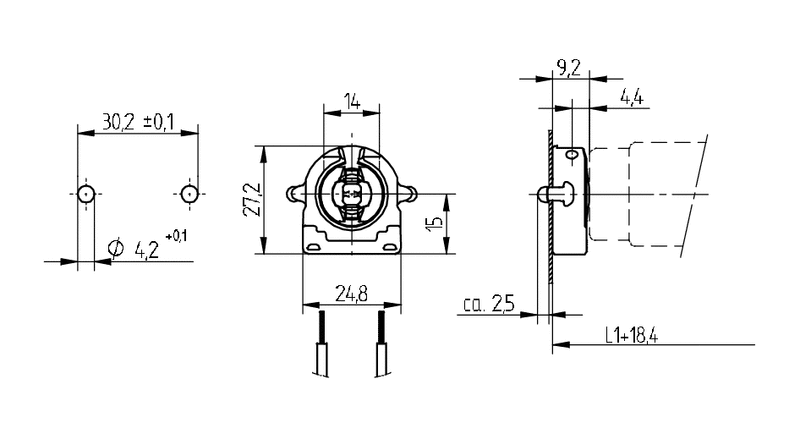

Frame thickness: | 9,2 |
Front test: | yes |
Luminaire wall thickness: | 0.5 - 1.1 |
Material: | Housing: PCRotor: PBT |
Note warranty conditions: | *Warranty conditions of BJB GmbH & Co. KG as stated as available via the Internet under https://www.bjb.com/en/legal-information/general-terms-and-conditions/ are valid. |
Packaging quantity: | 500 |
Producttype: | G13 End Mount Lampholders |
Rotor: | with |
Series: | Linear Fluorescent Lampholders for dry rooms (IP20) |
Top Test: | yes |
UL?: | yes |
Weight: | 5 g |
Wiring: | through the body |
mounting method 1: | Push-in pins |
old article number: | 26.422.4009.50 |
Available Downloads
Available CAD Downloads
Certifications
Article Number | Status | Description | Documents |
---|---|---|---|
26.422.4009-0 | Genehmigung_liegt_vor-Approval_at_hand1263916 | ||
26.422.4009-0 | Genehmigung_liegt_vor-Approval_at_hand3677956 | ||
26.422.4009-0 | Genehmigung_liegt_vor-Approval_at_hand2849931 | ||
26.422.4009-0 | cULus,_gültig_für_USA_und_Kanada-cULus_(USA_and_Kanada)727851 | ||
26.422.4009-0 | ENEC_Zeichen-ENEC_Approval5164211 | ||
26.422.4009-0 | Genehmigung_liegt_vor-Approval_at_hand749627 | ||
26.422.4009-0 | Genehmigung_liegt_vor-Approval_at_hand3463569 |
-
-
-
-
-
0,5 - 1,1
-
-
-
-
18 AWG0,5 -1,0 mm²
-
