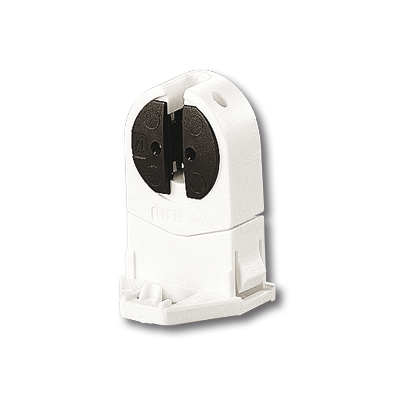

Fluorescent lampholder G5
Article number:
26.620.2005-0
EAN:
4049853
-
-
0,5 - 1,5
-
-
-
-
-
18 AWG0,5 -1,0 mm²
-
Product information "Fluorescent lampholder G5"

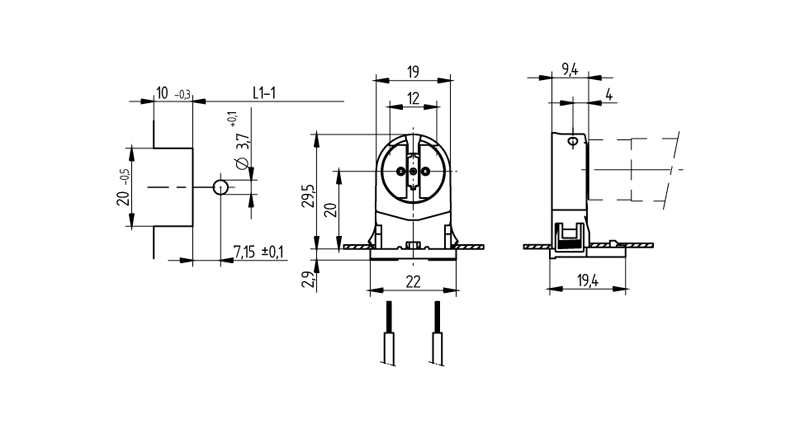

For cut-outs open at the rear: 10 x 20 mm
A pair of lampholders provides a lamp length tolerance compensation of 2 mm
A pair of lampholders provides a lamp length tolerance compensation of 2 mm
| Ausführung: | G5 (T5): Push-Through Lampholders |
|---|---|
| Color: | white |
| Front test: | yes |
| Lamp axis height: | 20 |
| Luminaire wall thickness: | 0.5 - 1.5 |
| Material: | Housing: PCRotor: PBT |
| Note warranty conditions: | *Warranty conditions of BJB GmbH & Co. KG as stated as available via the Internet under https://www.bjb.com/en/legal-information/general-terms-and-conditions/ are valid. |
| Packaging quantity: | 1000 |
| Producttype: | G5 Push-Through Lampholders |
| Retaining pins: | yes |
| Rotor: | with |
| Series: | Linear Fluorescent Lampholders for dry rooms (IP20) |
| T-marking: | 130 |
| Top Test: | yes |
| UL?: | yes |
| Weight: | 3 g |
| approbation: | cULus |
| cULus file no.: | E-92235 |
| mounting method 1: | Snap fixing |
| old article number: | 26.620.2005.50 |
Available Downloads
Available CAD Downloads
Certifications
| Article Number | Status | Description | Documents |
|---|---|---|---|
| 26.620.2005-0 | PSE-Mark_(Japan)-PSE-Mark1206225 | ||
| 26.620.2005-0 | Genehmigung_liegt_vor-Approval_at_hand2667527 | ||
| 26.620.2005-0 | ENEC_Zeichen-ENEC_Approval713266 | ||
| 26.620.2005-0 | Genehmigung_liegt_vor-Approval_at_hand749651 | ||
| 26.620.2005-0 | Genehmigung_liegt_vor-Approval_at_hand1193791 | ||
| 26.620.2005-0 | Genehmigung_liegt_vor-Approval_at_hand3677956 | ||
| 26.620.2005-0 | cULus,_gültig_für_USA_und_Kanada-cULus_(USA_and_Kanada)727851 | ||
| 26.620.2005-0 | Genehmigung_liegt_vor-Approval_at_hand1263916 |
-
-
0,5 - 1,5
-
-
-
-
-
18 AWG0,5 -1,0 mm²
-
