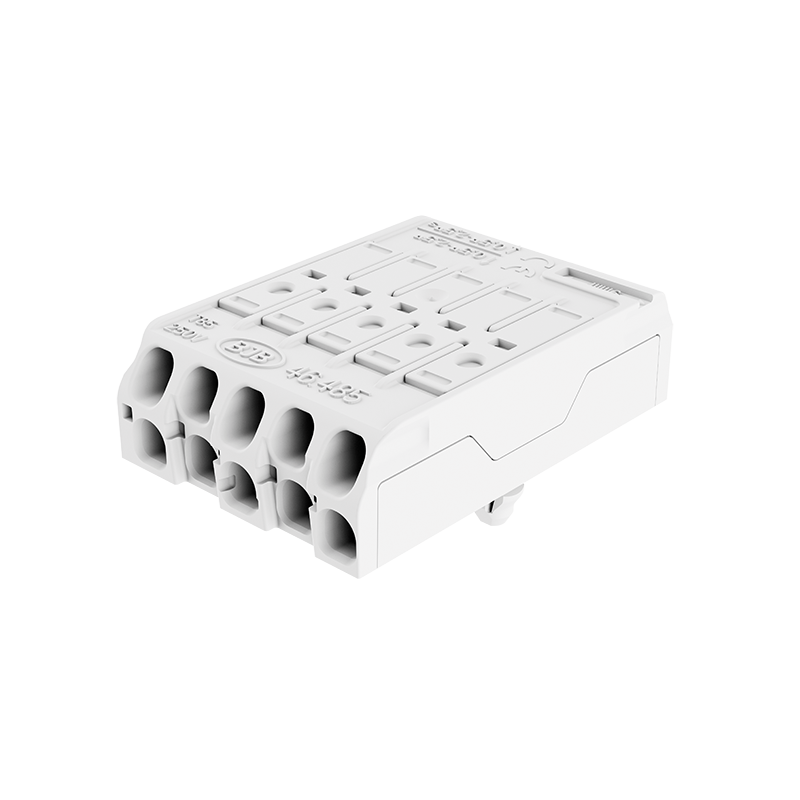

Flat Terminal block 5 poles with Snap-in pins 3NEZ12 and contact opening function
Flat terminal block 5 pole with contact opening function
Upper terminal connection: 0.5 - 2.5 mm²
Direct insertion of solid wire ends and finely stranded wire ends by using the contact opening function
Contact opening function - also for release of already inserted wires
Lower terminal connection:
- 0.5 - 2.5 mm² for solid wire ends
- 1.5 - 2.5 mm2 for rigid and stranded wire ends
- Wire release function by twisting and pulling
Strip length: 9 ±1 mm
Top Test openings
Approvals: ÖVE Reg.

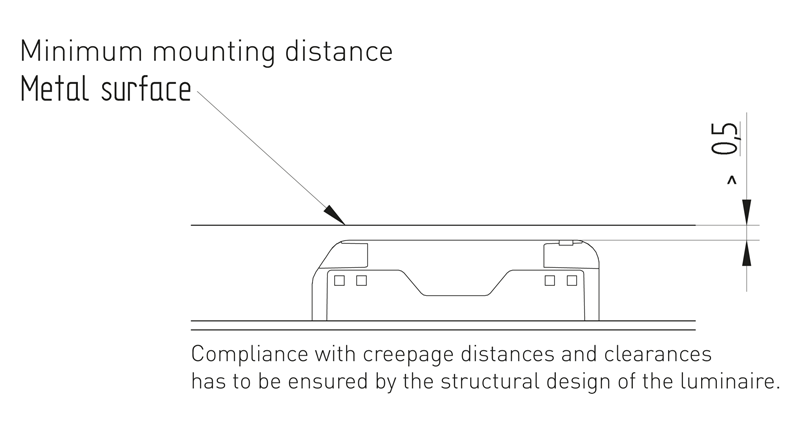

Compliance with creepage distances and clearances (eg according to EN 60598) has to be ensured by the structural design of the luminaire.

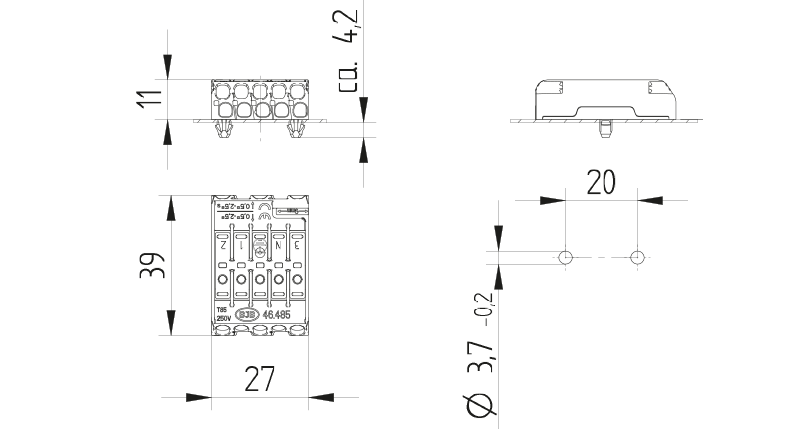

Sheet metall cutout is compatible to 46.415.1114
Product is identical to 46.485.1117, but with different labeling 3NEZ12
| Color: | white |
|---|---|
| Contact opening: | With integral cable release |
| Lettering: | 3 N ⏚ 1 2 |
| Luminaire wall thickness: | 0.5 - 1.2 |
| Material: | Housing: PA, beige, PC, white |
| Note warranty conditions: | *Warranty conditions of BJB GmbH & Co. KG as stated as available via the Internet under https://www.bjb.com/en/legal-information/general-terms-and-conditions/ are valid. |
| Number of poles: | 5 |
| Packaging quantity: | 500 |
| Producttype: | Flat terminal block 5 pole |
| Series: | Flat Terminal Block 5 pole |
| Weight: | 12 g |
| mounting method 1: | Push-in mount with Snap-in pins 3NEZ12 |
| old article number: | 46.485.1111.50 |
