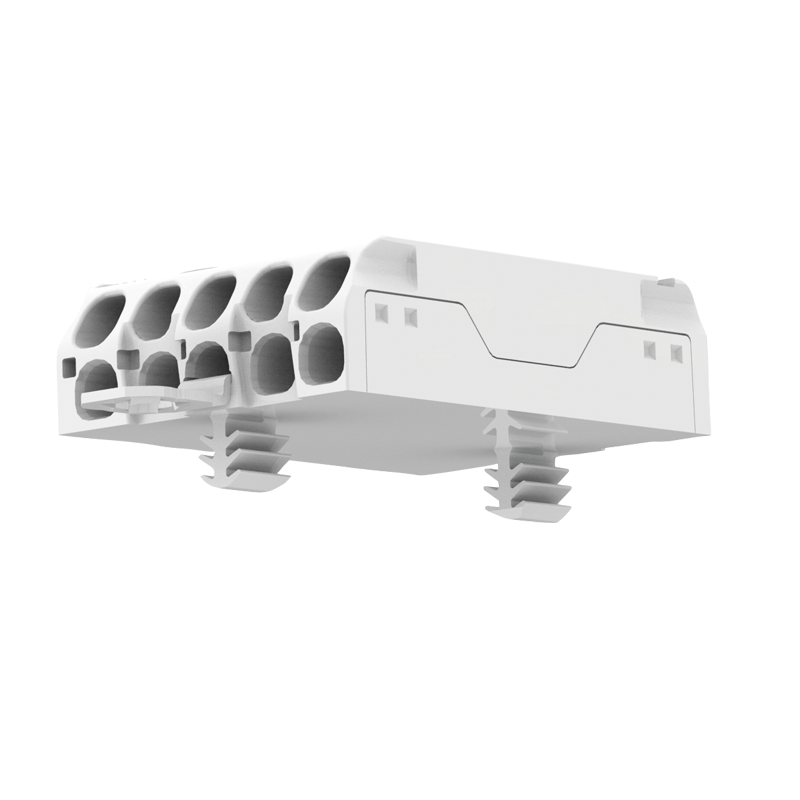

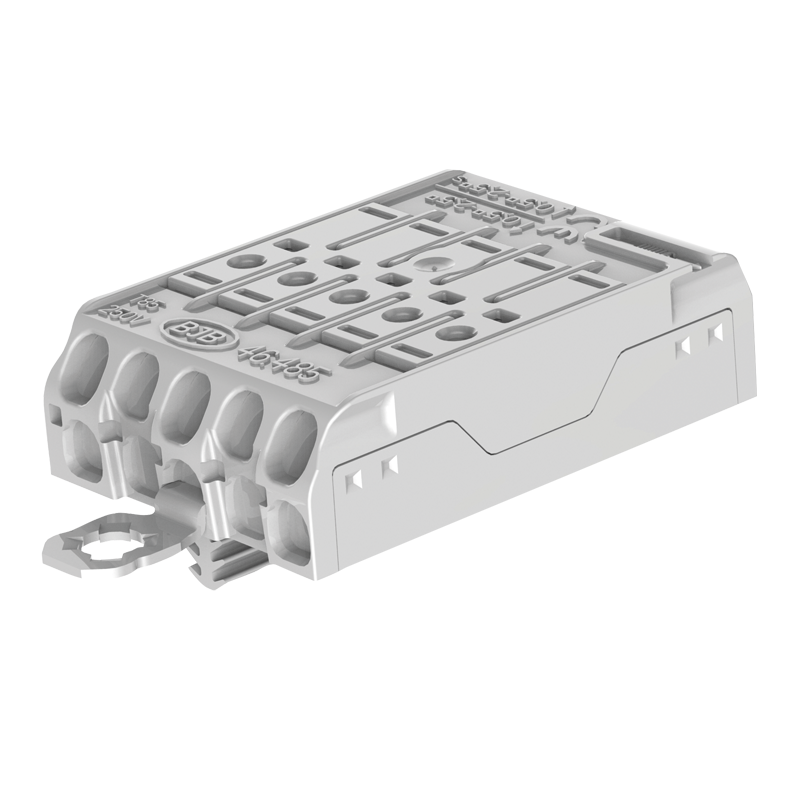

Flat Terminal block 5 poles with Earth bracket, snap-in pins Aluprofile 3NEZ12 and contact opening function
-
-
-
-
-
0,5 - 1,2
-
ø 0.5 - 2.5 mm²
-
max. ø 1,8 mm
-
-
ø 1.5 - 2.5 mm²
-
9 - 10 mm
Flat terminal block 5 pole with contact opening function
Upper terminal connection: 0.5 - 2.5 mm²
Direct insertion of solid wire ends and finely stranded wire ends by using the contact opening function Contact opening function - also for release of already inserted wires
Lower terminal connection:
- 0.5 - 2.5 mm² for solid wire ends
- 1.5 - 2.5 mm2 for rigid and stranded wire ends
- Wire release function by twisting and pulling
Strip length: 9 ±1 mm
Top Test openings

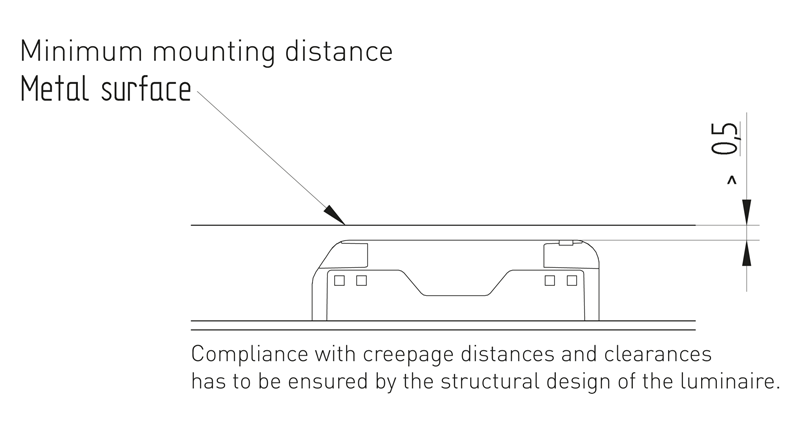

Approvals: ÖVE Reg. Compliance with creepage distances and clearances (eg according to EN 60598) has to be ensured by the structural design of the luminaire.
| Contact opening: | With integral cable release |
|---|---|
| Earth contact : | Earth bracket |
| Lettering: | 3 N ⏚ 1 2 |
| Luminaire wall thickness: | 0.5 - 1.2 |
| Material: | Housing: PA, beige, PC, white |
| Note warranty conditions: | *Warranty conditions of BJB GmbH & Co. KG as stated as available via the Internet under https://www.bjb.com/en/legal-information/general-terms-and-conditions/ are valid. |
| Number of poles: | 5 |
| Packaging quantity: | 500 |
| Producttype: | Flat terminal block 5 pole |
| Series: | Flat Terminal Block 5 pole |
| Weight: | 12 g |

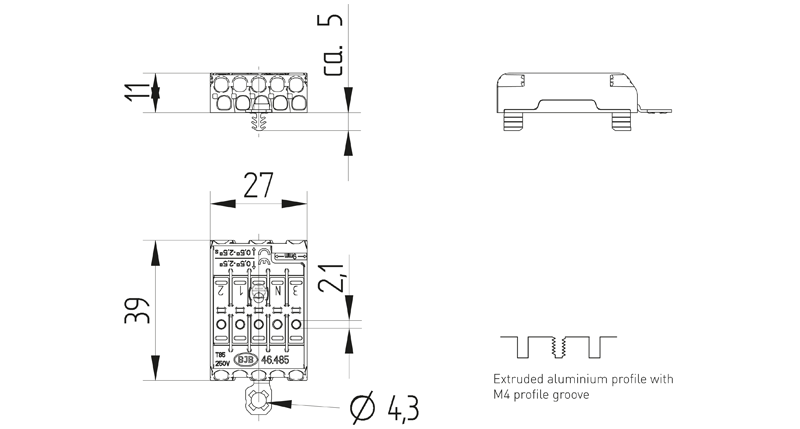

| mounting method 1: | Snap-in pins Aluprofile 3NEZ12 for use in extruded aluminum profiles with M4 profil groove |
| old article number: | 46.485.4114.50 |
