Counter support for Inlineadapter with locking mechanism
Article number:
28.701.U305-2
EAN:
4049853
Product information "Counter support for Inlineadapter with locking mechanism"
Counter support with locking mechanism

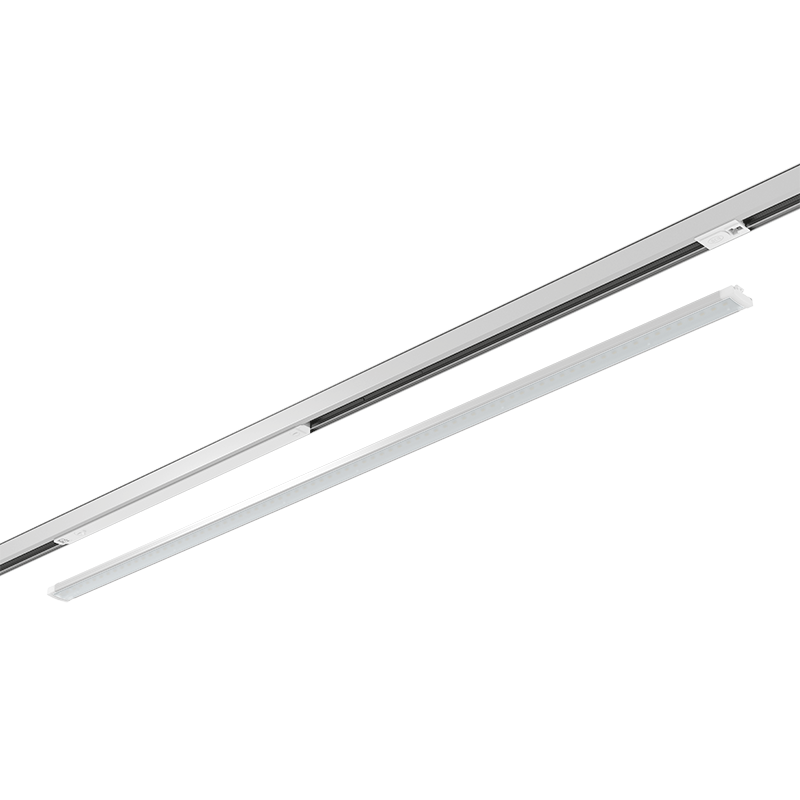

Lamp support for Linear Flat LED lamps

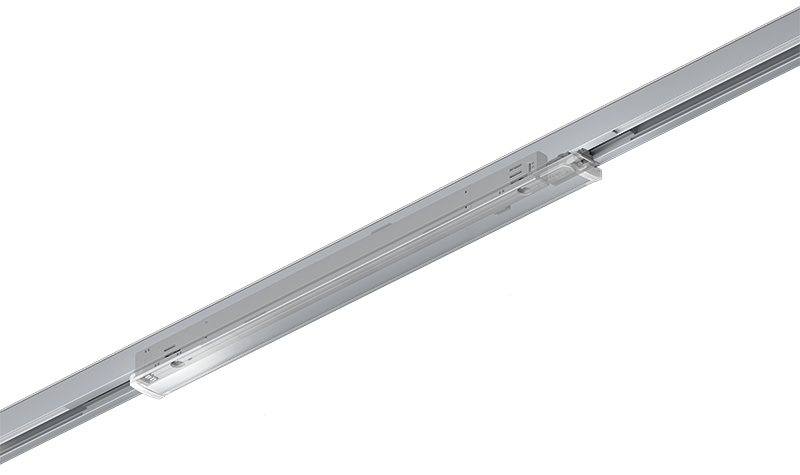

For 3-phase power tracks
• Thermal extension: Axial movement will be compensated
• Release function with spring
1. To open the locking mechanism please twist the rotating latch to the side.

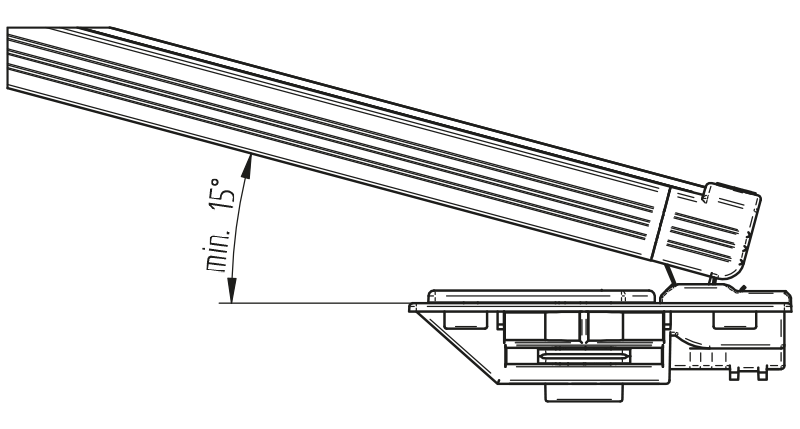

2. Insert and position the counter support into the power track

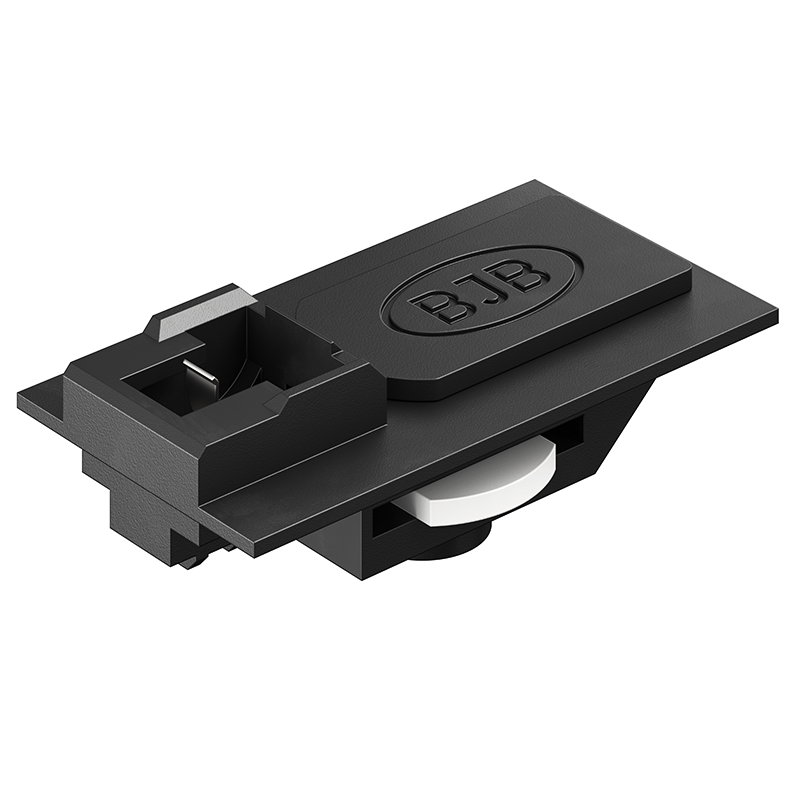

3. By turning the rotating latch into the initial position the counter support is arrested into the power track
| Ausführung: | Lamp support for Linear Flat LED lamps |
|---|---|
| Color: | black |
| Note on electrical and optical tolerances: | +/- 10% |
| Note warranty conditions: | *Warranty conditions of BJB GmbH & Co. KG as stated as available via the Internet under https://www.bjb.com/en/legal-information/general-terms-and-conditions/ are valid. |
| Operating mode: | Constant current |
| Packaging quantity: | 480 |

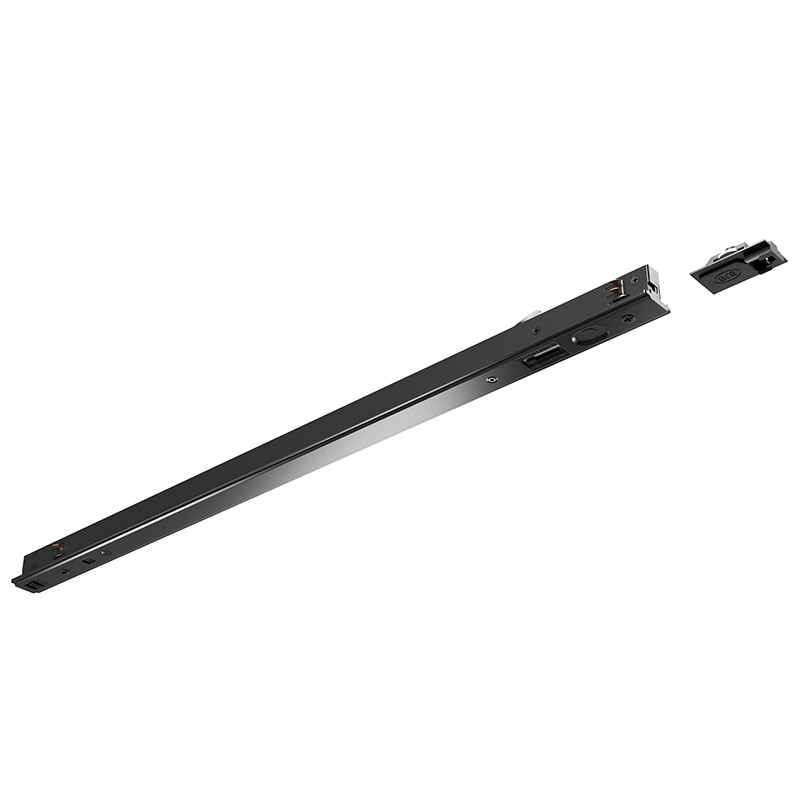

| Producttype: | Inlineadapter (ECG) Universal 3 Phase Track System |
| Series: | Inlineadapter (ECG) Universal 3 Phase Track System |
| Temperature rating: | Surrounding temperature -20°C to +40°C - Max. Tc-temperature 75° C |
| Weight: | 3 g |
| old article number: | 28.701.U305.80 |
