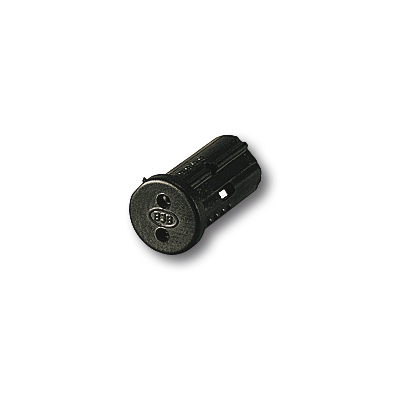

Connecting piece GZ 4
Article number:
25.264.1000-0
EAN:
4049853
-
-
-
-
max. ø 1,8 mm
Product information "Connecting piece GZ 4"
- Wires permanently installed after insertion
- Continuous working temperature:
T200 - for the contacts
240° C - for the housing

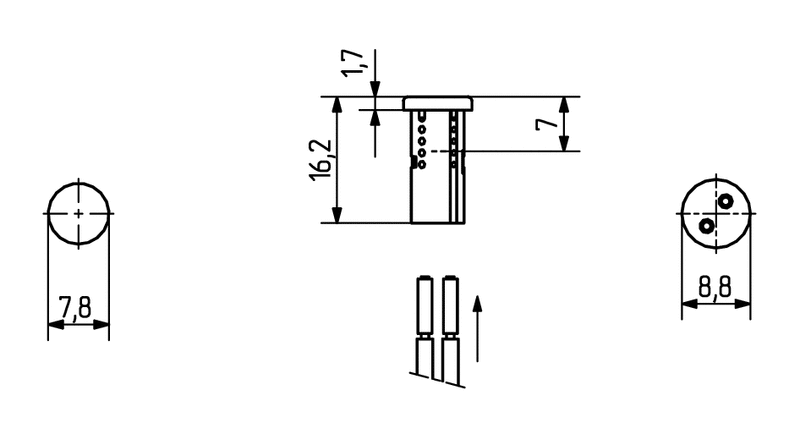

- Assembles into 7.8 mm dia. cut-out. Also possible to tube mount
(e.g. into a tube with external 10 mm O.D. and 7.8 mm nominal I.D.).
Actual dimension must be consistent and suitable for the
intended application.
- Continuous working temperature:
T200 - for the contacts
240° C - for the housing
- Assembles into 7.8 mm dia. cut-out. Also possible to tube mount
(e.g. into a tube with external 10 mm O.D. and 7.8 mm nominal I.D.).
Actual dimension must be consistent and suitable for the
intended application.
| Ausführung: | G4 / Connector GZ4 |
|---|---|
| Color: | anthracite (black/gray) |
| Halogen lamps-low voltage: | G4 |
| Material: | Housing: PPSContacts: CuNi-CrNi |
| Note warranty conditions: | *Warranty conditions of BJB GmbH & Co. KG as stated as available via the Internet under https://www.bjb.com/en/legal-information/general-terms-and-conditions/ are valid. |
| Packaging quantity: | 500 |
| Producttype: | G4 / Connector GZ4 |
| Series: | Low Voltage Halogen Lampholders |
| UL?: | yes |
| Weight: | 2 g |
| approbation: | cURus |
| mounting method 1: | Push through mount for cut out ø 7.8 mm |
| old article number: | 25.264.1000.90 |
Available Downloads
Available CAD Downloads
Certifications
| Article Number | Status | Description | Documents |
|---|---|---|---|
| 25.264.1000-0 | Genehmigung_liegt_vor-Approval_at_hand4805042 | ||
| 25.264.1000-0 | cURus,_gültig_für_USA_und_Kanada-cURus_(USA_and_Kanada)703640 | ||
| 25.264.1000-0 | Genehmigung_liegt_vor-Approval_at_hand3497918 | ||
| 25.264.1000-0 | Genehmigung_liegt_vor-Approval_at_hand1357643 | ||
| 25.264.1000-0 | ENEC_Zeichen-ENEC_Approval709836 |
-
-
-
-
max. ø 1,8 mm
