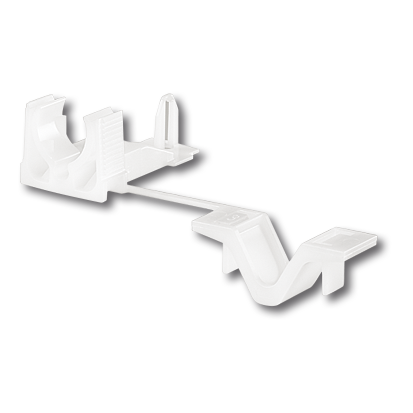

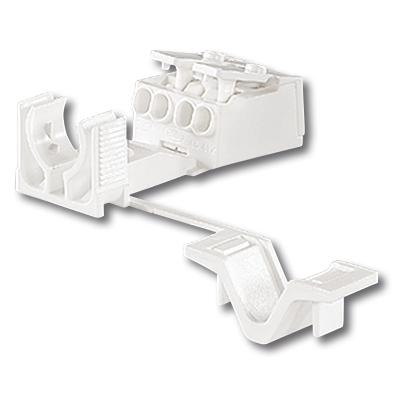

Cable clamp
Article number:
46.412.E371-0
EAN:
-
Product information "Cable clamp"

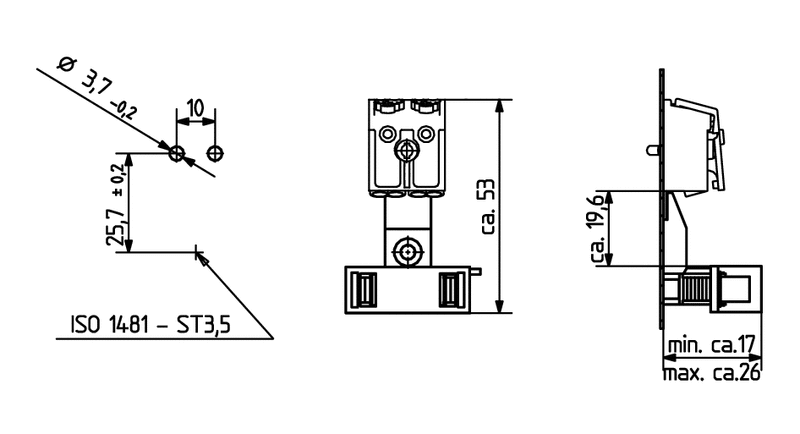

Screw mounting: for self-tapping screws
Screw length and screw form must be suitable for the intended application
Suitable for cable with 6 mm - 10 mm dia.
Complies with the requirements of EN 60598 § 5.2.10.1
(maximum total cable cross section 8 mm²)
Screw length and screw form must be suitable for the intended application
Suitable for cable with 6 mm - 10 mm dia.
Complies with the requirements of EN 60598 § 5.2.10.1
(maximum total cable cross section 8 mm²)
| Color: | white |
|---|---|
| Material: | Material: POM |
| Note warranty conditions: | *Warranty conditions of BJB GmbH & Co. KG as stated as available via the Internet under https://www.bjb.com/en/legal-information/general-terms-and-conditions/ are valid. |
| Packaging quantity: | 500 |
| Producttype: | Accessories pushwire terminals |
| Series: | Pushwire terminals |
| Train unloaders: | for terminal blocks 46.412 |
| Weight: | 3 g |
| mounting method 1: | Screw mount |
| old article number: | 46.412.-371.50 |
