OptiSpot Reflector Ø 110 mm

Product information "OptiSpot Reflector Ø 110 mm"

Reflector is optimized for use with connectors 47.319.2013 / 2021 / 2025 / 2026 / 2345 and 47.360.5010.50 with Ø 50 mm

• Reflector interface is adapted to the mixing cone of the connector
• Possibly visually disruptive openings of the connector are partly covered

Recommended for COB's with LES < 17 mm

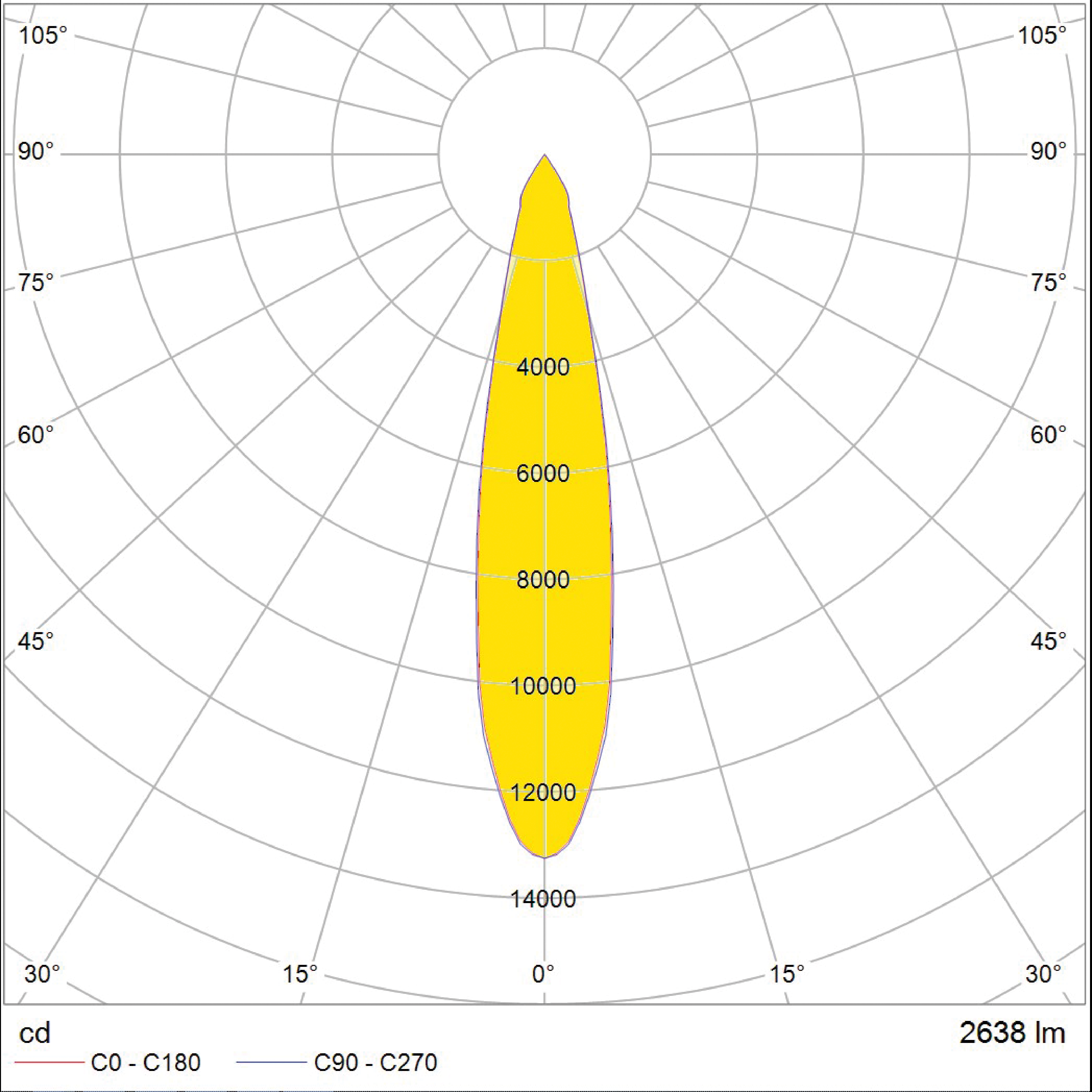

Beam angle (FWHM) measured with Citizen CLU38 and connector 47.319.2025.50.

Beam angle depends on used COB and its LES.


Height: 80 mm
Light Distribution: Medium
Material: PC, Aluminium coated
Note warranty conditions: *Warranty conditions of BJB GmbH & Co. KG as stated as available via the Internet under are valid.
Operating temperature: max. 100 °C
Packaging quantity: 108
Producttype: OptiSpot Reflectors Ø 110 mm
Series: Reflectors Ø 110 mm for Spotlight Connectors Ø 50 mm
Weight: 50,5 g
mounting method 1: Bayonet fixing by Twist & Lock action


Article Number Status Description Documents


OptiSpot R Cover- Cover plate
OptiSpot R lens - Diffusor lens
