COB Connector Ø50 LED array 24x19

Article number: 47.319.2394-0

EAN: -

0,25 - 0,5 mm²
0,5 mm²

Product information "COB Connector Ø50 LED array 24x19"

Spotlight connector for COB-LEDs.
Suitable for the following COB types

Manufacturer: Nichia
COB-Type: NFCLJ108B-V1M7

• With integrated reflector interface
• Easy handling due to pre-assembly of the COB by fixing arms
• Screw fixing: for screws M3 and locking washer
• Max. torque for screw fixing 0.5 Nm • Strip length: 7-1 mm
• Polarity symbols of connector and COB must be observed in assembly
• Specification of COB manufacturer must be observed
• If COBs are connected in series, the creepage distances and clearances of the individual modules must be the total voltage of the series connection.
• VDE-Reg. Nr. E289
• cURus: for limited applications

Certification Mark:	VDE CERTIFICATE OF CONFORMITY WITH FACTORY SURVEILLANCE EN 60838-1
Conductor cross-section:	0.5 mm²

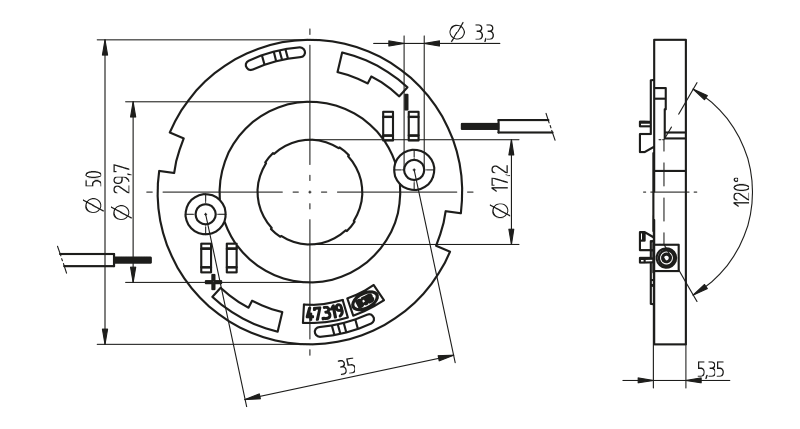

Diameter:	Ø 50 mm
LED?:	intended for the use of COBs
LED Array:	24 x 19 mm
Material:	Housing: PBTContacts: CuSn
Note warranty conditions:	*Warranty conditions of BJB GmbH & Co. KG as stated as available via the Internet under https://www.bjb.com/en/legal-information/general-terms-and-conditions/ are valid.
Operating temperature:	max. 130°C
Packaging quantity:	420
Producttype:	Spotlight Connectors and Accessories
Rating:	3A / 60 VDC
Series:	COB Connectors - 47.319
UL:	no
cURus file no.:	E-345385
mounting method:	Screw fixing
mounting method 2:	P2F fixing with 28.902.-102
old article number:	47.319.2394.50

Available Downloads

Available CAD Downloads

3D-CAD_(STEP,_Parasolid,_IGES,_3D-PDF)01T-A8Y-05

Certifications

Article Number	Status	Description	Documents
47.319.2394-0			EAC_Genehmigung_liegt_vor_--EAC_approval_at_hand_-5665445
47.319.2394-0			ÜG_Überwachungsgutachten_--Certificate_of_Conformity_-5852779

Suitable for the following LED types

LED manufacturer	LED designation	More information
Nichia	NFCLJ108B-V1M7	www.nichia.co.jp
