LED oven lamp Square 55x70 Set with LED unit 77.115.8101 und reflector unit 77.638.U201
-
LED unit 77.115.8101
-
-
Reflector unit 77.638.U201
Product information "LED oven lamp Square 55x70 Set with LED unit 77.115.8101 und reflector unit 77.638.U201"

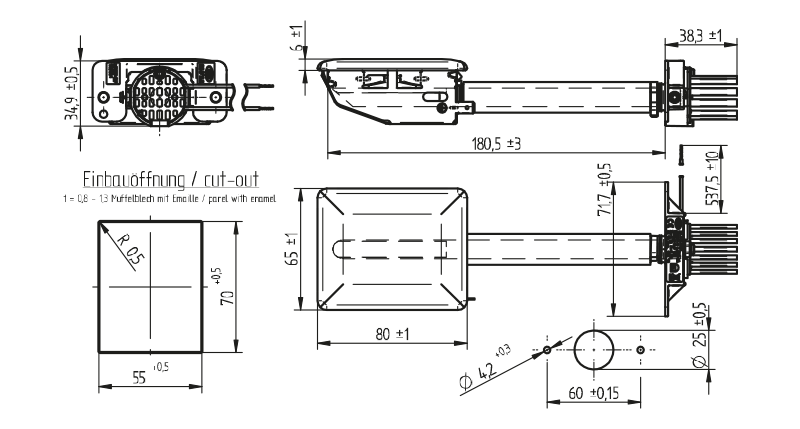

Product information LED oven lamp 55x70
LED Oven Luminaire with Glass Light Guide and Reflector This product is a SET consisting of the following sales items: 77.115.8101 (LED unit) and 77.638.U201 (reflector unit), designed for lateral installation in ovens.
Variable installation heights can be easily compensated thanks to the adjustable length of the glass light guide. Flexible LED configurations allow for tailored solutions – whether in terms of correlated color temperature (CCT), color rendering index (CRI), or the number of LEDs.
The luminaire meets Protection Class III requirements through operation with safe SELV voltage. The maximum permissible current must be determined under the most unfavorable operating conditions.
Product selection and technically correct installation in accordance with the relevant standards (e.g., IEC 62031 and IEC 60335) are the responsibility of the user. Custom versions with higher requirements – such as steam resistance, microwave shielding, or pyrolysis suitability – are available upon request.
| Application areas: | Home + Professional |
|---|---|
| Ausführung: | Dimmable with suitable control gear |
| Colour temperature: | 3.500 K |
| Durability: | Average life time (L70 / B50) = 5.000 h (according to BJB test requirements) |
| LED?: | yes |
| Lamp: | LED |
| Luminous flux Ta25° C If typical: | 280 lm |
| Max. Temperature at Tc point: | 110° C |
| Note warranty conditions: | *Warranty conditions of BJB GmbH & Co. KG as stated as available via the Internet under https://www.bjb.com/en/legal-information/general-terms-and-conditions/ are valid. |
| Operating current: | 1.000 mA |
| Operating mode: | Constant current |
| Other: | This article is a SET consisting of the sales articles 77.115.8101 (LED unit) and 77.638.U201 (reflector unit) |
| Output: | 6.0 W |
| Packaging quantity: | 24 |
| Producttype: | LED Oven Lamp |
| Series: | LED |
| Weight: | 185 g |
| old article number: | 77.115.8501.00 |
Available CAD Downloads
Certifications
| Article Number | Status | Description | Documents |
|---|---|---|---|
| 77.115.8501-0 | ENEC_Zeichen_--ENEC_Approval_-5772810 |
