Terminal block 4 poles
Article number:
48.121.0411-0
EAN:
-
-
-
-

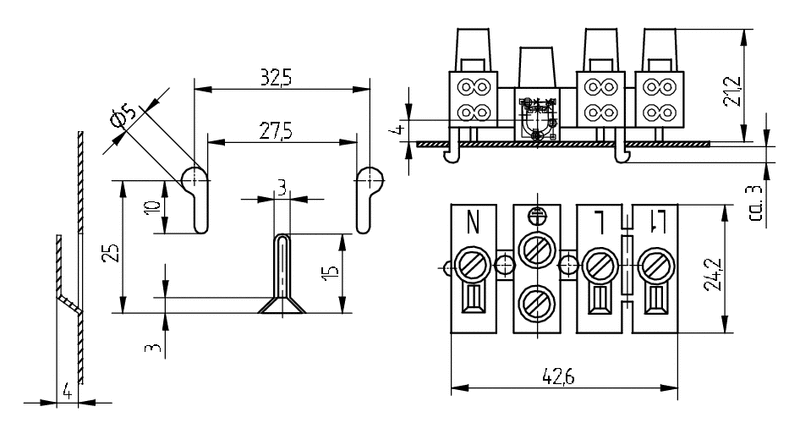

ø 3,4
-
-
-
0,8 - 1,0
Product information "Terminal block 4 poles"
Screw / pushwire terminals
Screw / screw terminal (for earth)
Nominal cross section: 1.5 mm²
Pushwire terminals: 0.5 - 1.5 mm²
Screw terminals will also accept wires with ferrule.
Screw / screw terminal (for earth)
Nominal cross section: 1.5 mm²
Pushwire terminals: 0.5 - 1.5 mm²
Screw terminals will also accept wires with ferrule.
| Color: | natural colour |
|---|---|
| Housing width: | 42 mm |
| Lettering: | L1 L ⏚ N |
| Luminaire wall thickness: | 0.8 - 1.0 |
| Material: | Housing: PA 6.6 |
| Note warranty conditions: | *Warranty conditions of BJB GmbH & Co. KG as stated as available via the Internet under https://www.bjb.com/en/legal-information/general-terms-and-conditions/ are valid. |
| Number of poles: | 4 |
| Packaging quantity: | 500 |
| Producttype: | 4 pole - screw / push-wire terminals |
| Screw terminals: | ø 3.4 |
| Series: | Screw / push-wire terminals |
| Weight: | 14 g |
| mounting method 1: | Snap fixing |
| old article number: | 48.121.0411.51 |
Available CAD Downloads
Certifications
| Article Number | Status | Description | Documents |
|---|---|---|---|
| 48.121.0411-0 | IRAM_Genehmigung_liegt_vor_--IRAM_approval_at_hand_-749986 | ||
| 48.121.0411-0 | ÜG_Überwachungsgutachten_--Certificate_of_Conformity_-718207 | ||
| 48.121.0411-0 | EAC_Genehmigung_liegt_vor_--EAC_approval_at_hand_-4070828 |
-
-
-
